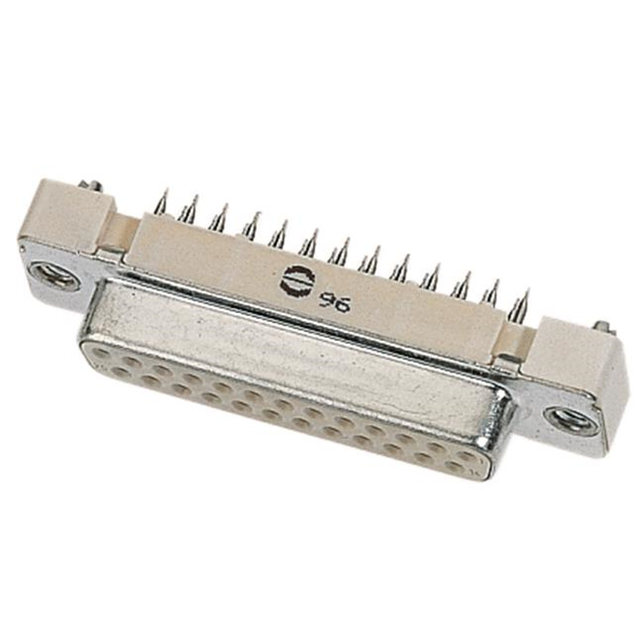

09665546513 Real Image
Same model may have multiple batches, images only for reference.

09665546513

Part No 09665546513
Manufacturer HARTING
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 50P VERT PRESS
Datasheet
09665546513 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr HARTING
Package Bulk
Product Status Obsolete
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 50
Number of Rows 3
Mounting Type Through Hole
Shell Size, Connector Layout 5 (DD, D)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Press-Fit
Shell Material, Finish Steel
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6.5A
Features Board Lock
Contact Form Stamped
Dielectric Material Liquid Crystal Polymer (LCP)
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 125°C
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 908779-09665546513
Ultra Librarian 3D Model Ultra Librarian 09665546513 CAD Model

Description

The 908779-09665546513 is a D-Sub Connector Assembly from HARTING.

  • Connector Type: receptacle
  • Contact Gender: female sockets
  • Positions: 50
  • Board Lock: yes
  • Contact Type: signal
  • Rows: 3
  • Termination: press-fit
  • Shell Material: steel
  • Mounting Type: through-hole
  • Temperature Range: -55°C to 125°C
  • Current Rating: 6.5A
  • Product Status: obsolete
  • Manufacturer: HARTING
