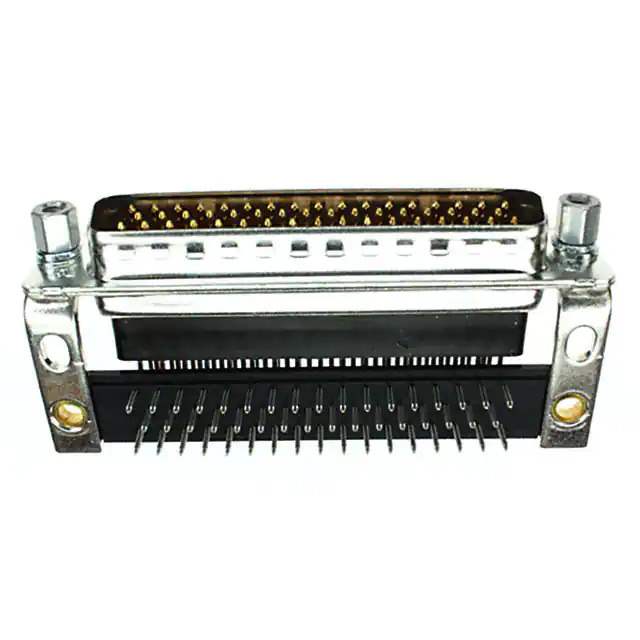

5747497-4 Real Image
Same model may have multiple batches, images only for reference.

5747497-4

Part No 5747497-4
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 50POS R/A SLDR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr TE Connectivity
Series AMPLIMITE HD-20
Package Bulk
Product Status Active
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 50
Number of Rows 3
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 5 (DD, D)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6A
Backset Spacing 0.545" (13.84mm)
Features Grounding Indents, Mounting Brackets
Voltage Rating 125V
Color Black
Dielectric Material Thermoplastic
Contact Material Brass
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 5747497
Standard Package 7 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856591-5747497-4
Ultra Librarian 3D Model Ultra Librarian 5747497-4 CAD Model

Description

The AMPLIMITE HD-20 Plug is a versatile D-Sub connector assembly designed for various applications. Manufactured by TE Connectivity, this connector offers reliable and efficient signal transmission.

  • Color: Black
  • Feature: Grounding Indents
  • Connector Type: Plug with Male Pins
  • Number of Positions: 50
  • Termination Method: Solder
  • Contact Finish: Gold-Plated
  • Package Quantity: 7 pcs
  • Mounting Type: Through-Hole, Right-Angle
  • Series: AMPLIMITE HD-20
  • Operating Temperature: -55°C to 105°C
  • Current Rating: 6A
  • Voltage Rating: 125V
