6-2301994-2

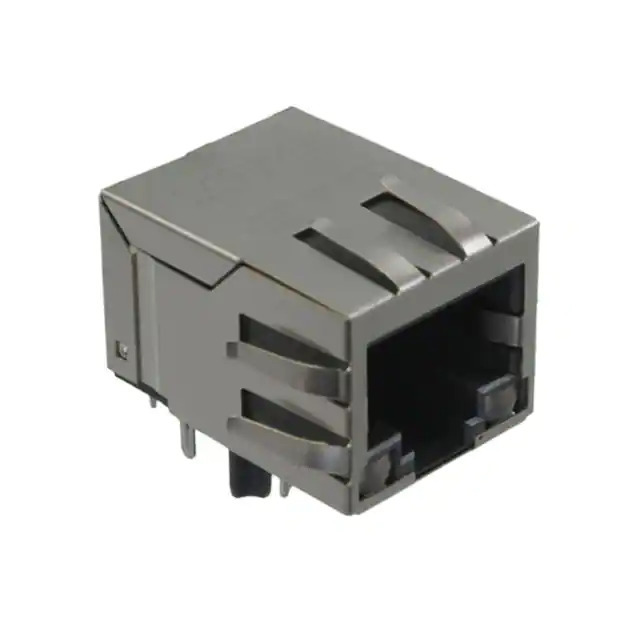

Name: 6-2301994-2
Brand: TE Connectivity
SKU: 1362668
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	6-2301994-2
Manufacturer	TE Connectivity
Catalog	Modular Connectors
Description	CONN JACK 1PORT 1000 BASE-T PCB / 1 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Modular Connectors - Modular Connector Jacks With Magnetics
Mfr	TE Connectivity AMP Connectors
Series	-
Package	Tray
Product Status	Active
Connector Type	RJ45
Number of Ports	1
Number of Rows	1
Applications	10/100/1000 Base-T, AutoMDIX
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Height Above Board	0.537" (13.65mm)
LED Color	Green, Yellow - Green, Yellow
Number of Cores per Jack	8
Shielding	Shielded, EMI Finger
Features	Board Lock
Tab Direction	Down
Contact Material	Copper Alloy
Contact Finish	Gold
Temperature Range - Operating	-40°C ~ 85°C
Contact Finish Thickness	30.0µin (0.76µm)
Shield Material	Brass
Housing Material	Liquid Crystal Polymer (LCP)
Base Product Number	2301994
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1362668-6-2301994-2
Ultra Librarian 3D Model	Ultra Librarian 6-2301994-2 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors modular connector jack with magnetics is a high-performance connector designed for 10/100/1000 Base-T and AutoMDIX applications.

Shielding: Shielded design with EMI finger
Orientation: 90° angle (right)
Mounting Type: Through hole
Contact Finish: Gold
Housing Material: Liquid crystal polymer (LCP)
Height Above Board: 0.537 inches
LED Color: Green and yellow
Temperature Range: -40°C to 85°C
