Same model may have multiple batches, images only for reference.

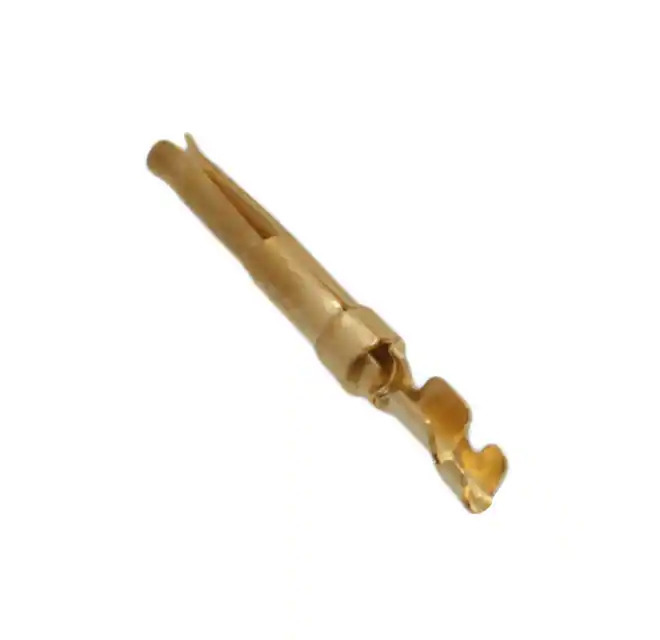

6-66505-9 TE Connectivity
Same model may have multiple batches, images only for reference.

6-66505-9

Part No 6-66505-9
Manufacturer TE Connectivity
Catalog Contacts - Multi Purpose
Description CONN SOCKET 24-28AWG GOLD CRIMP / Socket Contact Gold Crimp 24-28 AWG Stamped
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Contacts - Multi Purpose
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HDP-20
Package Bulk
Product Status Active
Type Stamped
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 24-28 AWG
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 66505
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1365054-6-66505-9
Ultra Librarian 3D Model Ultra Librarian 6-66505-9 CAD Model

Description

The TE Connectivity AMP Connectors AMPLIMITE HDP-20 series offers multi-purpose contacts.

  • Contact Type: Stamped
  • Product Status: Active
  • ECCN: EAR99
  • Connector Type: Socket
  • Contact Termination: Crimp
  • Wire Gauge: 24 to 28 AWG
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Contact Material: Phosphor Bronze
