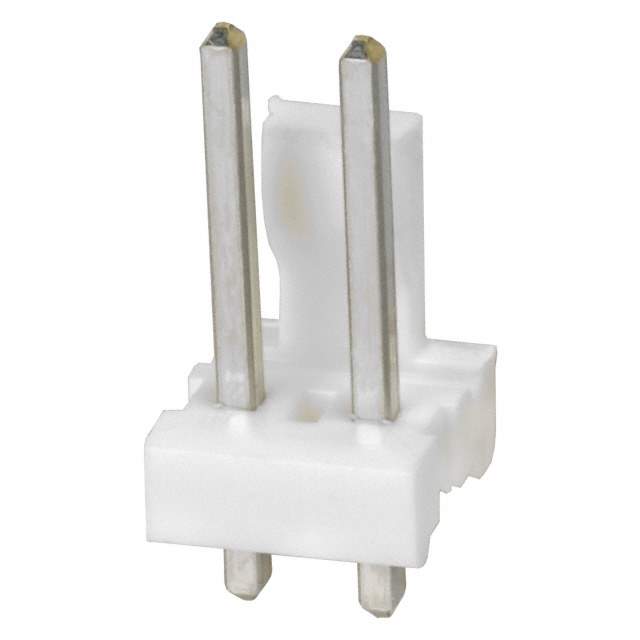

Same model may have multiple batches, images only for reference.

640445-2

Name: 640445-2
Brand: TE Connectivity
SKU: 809517
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	640445-2
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 2POS 3.96MM / MTA-156 HEADER ASSEMBLY, FRICTION LOCK, STRALGHT .045 SQUARE POST, TIN PLATED
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	TE Connectivity AMP Connectors
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.156" (3.96mm)
Number of Positions	2
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 1 Wall
Mounting Style	Through Hole
Termination	Solder
Fastening Type	Friction Lock
Contact Length - Mating	0.400" (10.16mm)
Contact Length - Post	0.125" (3.18mm)
Overall Contact Length	0.650" (16.51mm)
Insulation Height	0.425" (10.80mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Thermoplastic, Glass Filled
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	Varies by Wire Gauge
Voltage Rating	600VAC
Applications	General Purpose, Industrial
Manufacturer Pack Quantity	2,000
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Limited
Win Source Part Number	809518-640445-2
Ultra Librarian 3D Model	Ultra Librarian 640445-2 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors 809518-640445-2 header connector is a male pin connector.

Fastening Type: Friction Lock
Style: Board to Cable/Wire
Pitch-Mating: 0.156 inches (3.96mm)
Insulation Height: 0.425 inches (10.80mm)
Shrouding: 1 Wall
Contact Shape: Square
Voltage Rating: 600VAC
Temperature Range: -55°C to 105°C
Contact Material: Copper Alloy
Contact Finish (Mating/Post): Tin
Flammability Rating: UL94 V-0
Positions Loaded: All 2
Mounting Style: Through Hole
Termination: Solder
Contact Length (Mating): 0.400 inches (10.16mm)
Contact Length (Post): 0.125 inches (3.18mm)
Overall Contact Length: 0.650 inches (16.51mm)
Insulation Material: Thermoplastic and Glass-Filled
