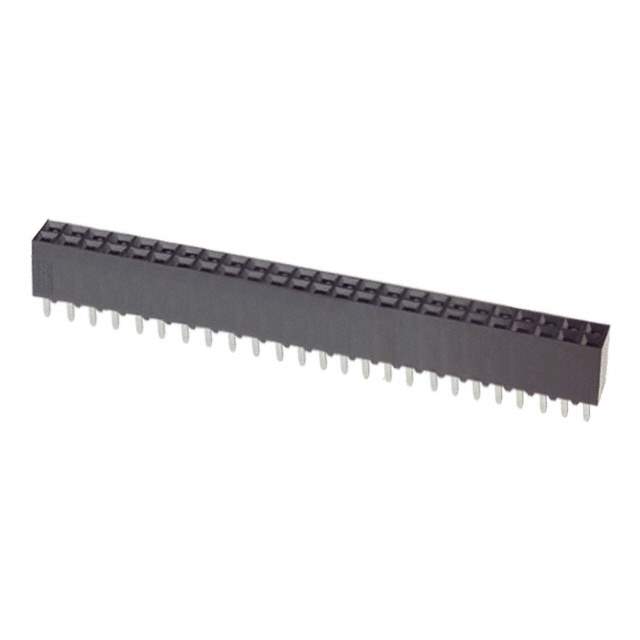

7-534206-5 Real Image
Same model may have multiple batches, images only for reference.

7-534206-5

Part No 7-534206-5
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT 50POS 0.1 GOLD PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 27 Weeks
Features 50 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Manufacturer TE Connectivity
Series AMPMODU Mod II
Package Tube
Operating Temperature Range -65°C ~ 125°C
Mounting Through Hole
Family Name 534206
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number A32951, 2266-7-534206-5, 75342065
Quantity per package 9
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 858136-7-534206-5
Ultra Librarian 3D Model Ultra Librarian 7-534206-5 CAD Model

Description

TE Connectivity's 858136-7-534206-5 is a 50 position receptacle connector suitable for use in a variety of applications.

  • Supply and Demand Status: Limited
  • Package: Tube
  • Pieces per Package: 9
  • MSL Level: 1 (unlimited)
  • Estimated Production Lead Time: 27 weeks
  • Win Source Part Number: 858136-7-534206-5
