735279

Part No 735279
Manufacturer TE Connectivity
Catalog Terminals

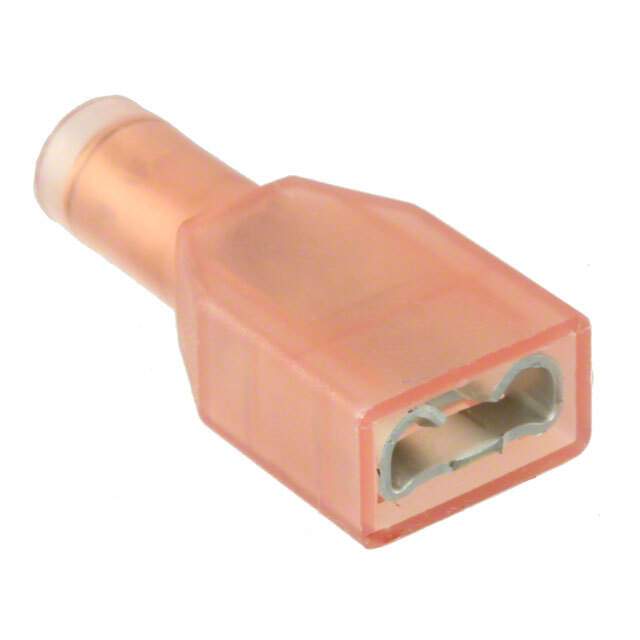

Description CONN QC RCPT 18.5-22AWG 0.250 / 0.250" (6.35mm) Quick Connect Female 18.5-22 AWG Crimp Connector Fully Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity
Series Faston, PIDG
Package Bulk
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length -
Length - Overall 0.846" (21.49mm)
Termination Crimp
Wire Gauge 18.5-22 AWG
Insulation Fully Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color Red
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.130" (3.30mm)
Base Product Number 7352
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Standard Package 100 pcs
Win Source Part Number 1381076-735279
Ultra Librarian 3D Model Ultra Librarian 735279 CAD Model

Description

The 1198212 is a female quick disconnect connector from the Faston, PIDG series by TE Connectivity.

  • Series: Faston, PIDG
  • Color: Red
  • Insulation: Fully Insulated
  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Overall Length: 0.846" (21.49mm)
  • Insulation Diameter: 0.130" (3.30mm)
  • Termination Type: Crimp
  • Contact Finish: Tin
  • Wire Gauge: 18.5-22 AWG
  • Mounting Type: Free Hanging (In-Line)
  • Package: Bulk
  • Material: Brass
  • Standard Package: 100 pcs
