Same model may have multiple batches, images only for reference.

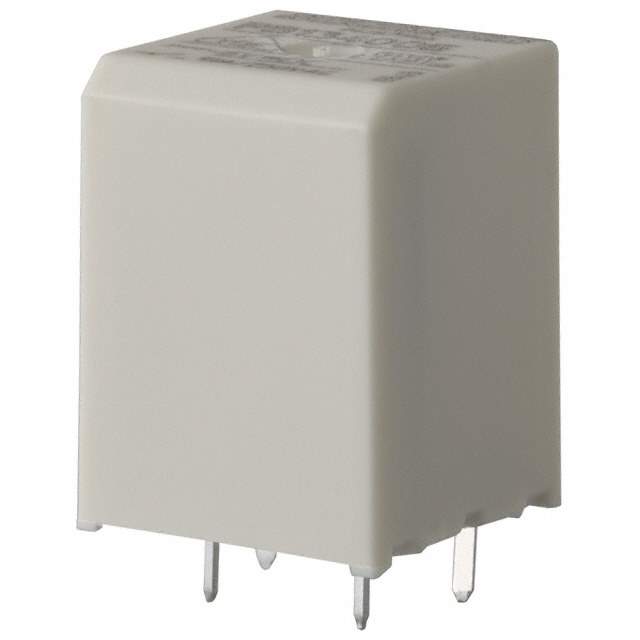

9-1415029-1 Real Image
Same model may have multiple batches, images only for reference.

9-1415029-1

Part No 9-1415029-1
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 10A 24V
Datasheet
9-1415029-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 15mA
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 10A
Switching Voltage 400VAC - Max
Turn On Voltage (Max) 18 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 10ms
Release Time 20ms
Features Insulation - Class F
Mounting Through Hole
Termination Style PC Pin
Coil Power 360 mW
Coil Resistance 1.6 kOhms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 054584-9-1415029-1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 9-1415029-1 CAD Model

Description

9-1415029-1 Electronic Component

The 9-1415029-1 is a premium component crafted for high-demand applications requiring uninterrupted performance and resilience.

  • Applications:
    • Aerospace systems
    • High-frequency trading platforms
    • Advanced laboratory equipment
  • Features and Benefits:
    • High reliability in critical operations
    • Extended operating range
    • Optimized for minimal power consumption

Additional Details: The 9-1415029-1 is trusted by professionals aiming for excellence in environments where operational failure is not an option.
