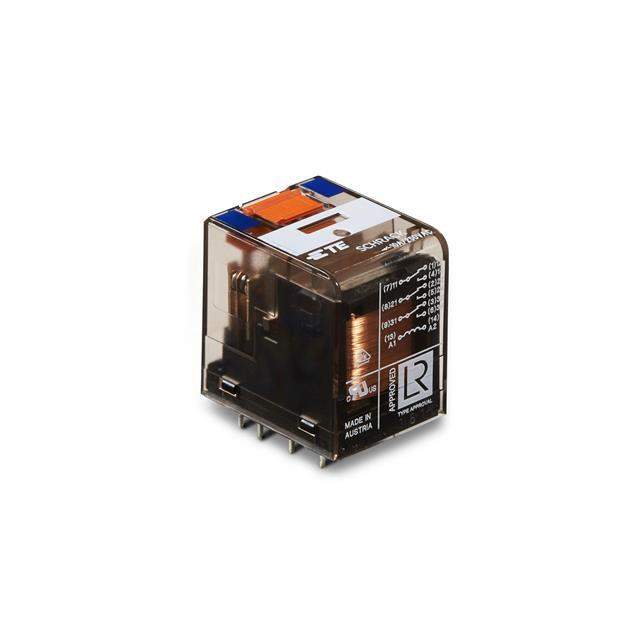

9-1415536-4 Real Image
Same model may have multiple batches, images only for reference.

9-1415536-4

Part No 9-1415536-4
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 3PDT 10A 24V  /  General Purpose Relay 3PDT (3 Form C) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series PT, SCHRACK
Package Bulk
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form 3PDT (3 Form C)
Contact Rating (Current) 10 A
Switching Voltage 400VAC - Max
Coil Current 30.9 mA
Coil Type Non Latching
Features Test Button
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class F
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 15 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 777 Ohms
Base Product Number 1415536
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.49.0075
Other Names 9-1415536-4-ND,PB2528,PT381024,2266-9-1415536-4
Standard Package 10
Win Source Part Number 1175983-9-1415536-4
Ultra Librarian 3D Model Ultra Librarian 9-1415536-4 CAD Model

Description

The 9-1415536-4 is a 3PDT (3 Form C) power relay from the PT series manufactured by TE Connectivity Potter & Brumfield Relays.

  • Contact Rating (Current): 10 A
  • Switching Voltage: 400VAC - Max
  • Coil Voltage: 24VDC
  • Coil Resistance: 777 Ohms
  • Protection Seal Rating: Sealed-flux
  • Mounting Type: Through-hole
  • Operating Temperature: -40°C to 70°C
  • Must Operate Voltage: 18 VDC
  • Must Release Voltage: 2.4 VDC
  • Application: Power relay
  • Package: Bulk
  • Pieces per package: 10
