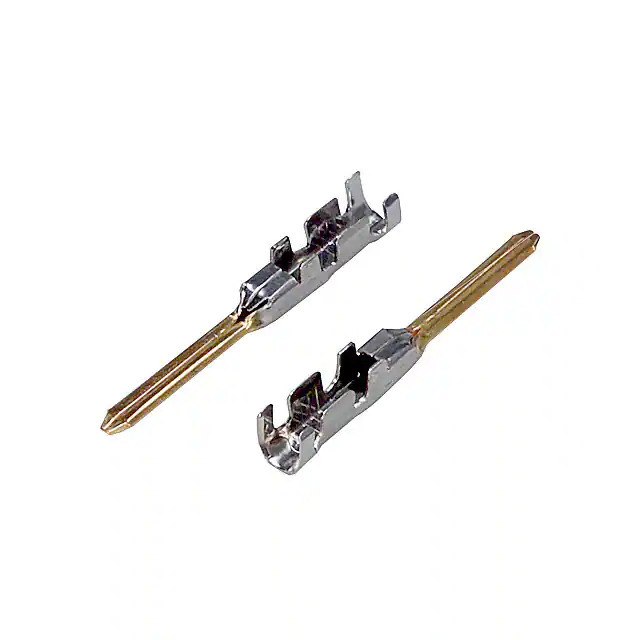

Same model may have multiple batches, images only for reference.

917485-2

Name: 917485-2
Brand: TE Connectivity
SKU: 1363247
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	917485-2
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN PIN 14-16AWG CRIMP GOLD / Pin Contact Gold 14-16 AWG Crimp
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Contacts
Mfr	TE Connectivity AMP Connectors
Series	Dynamic D-3
Package	Tape & Reel
Product Status	Active
Type	-
Pin or Socket	Pin
Contact Termination	Crimp
Wire Gauge	14-16 AWG
Contact Finish	Gold
Contact Finish Thickness	15.0µin (0.38µm)
Base Product Number	917485
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.90.4000
Win Source Part Number	1363247-917485-2
Ultra Librarian 3D Model	Ultra Librarian 917485-2 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors Dynamic D-3 Pin is a rectangular connector contact used in various electronic applications.

Wire Gauge: 14-16 AWG
Contact Termination: Crimp
Contact Finish: Gold
Series: 917485
Product Status: Active
Package: Tape and Reel
MSL Level: 1
