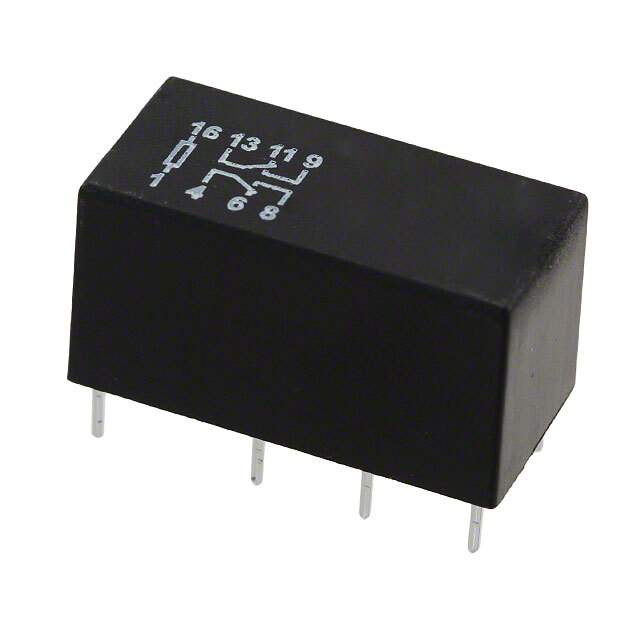

C93419 Real Image
Same model may have multiple batches, images only for reference.

C93419

Part No C93419
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description RELAY TELECOM DPDT 2A 24VDC / Telecom Relay DPDT (2 Form C) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Signal Relays, Up to 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series MT2, AXICOM
Package Tube
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2 A
Switching Voltage 250VAC, 220VDC - Max
Coil Current 8.3 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 15.6 VDC
Must Release Voltage 2.4 VDC
Operate Time 5 ms
Release Time 3 ms
Temperature Range - Operating -55°C ~ 85°C
Contact Material Silver Nickel (AgNi), Gold (Au)
Relay Type Telecom
Coil Resistance 2.88 kOhms
Base Product Number C934
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1315100-C93419
Ultra Librarian 3D Model Ultra Librarian C93419 CAD Model

Description

The MT2 series DPDT signal relay is a high-quality relay designed for telecom applications from AXICOM.

  • Coil Voltage: 24VDC
  • Coil Resistance: 2.88 kOhms
  • Contact Rating: 2A
  • Switching Voltage: 250VAC, 220VDC maximum
  • Contact Material: silver nickel and gold
  • Mounting Type: through-hole
  • Operating Temperature: -55°C to 85°C
  • Operate Time: 5ms
  • Release Time: 3ms
