Same model may have multiple batches, images only for reference.

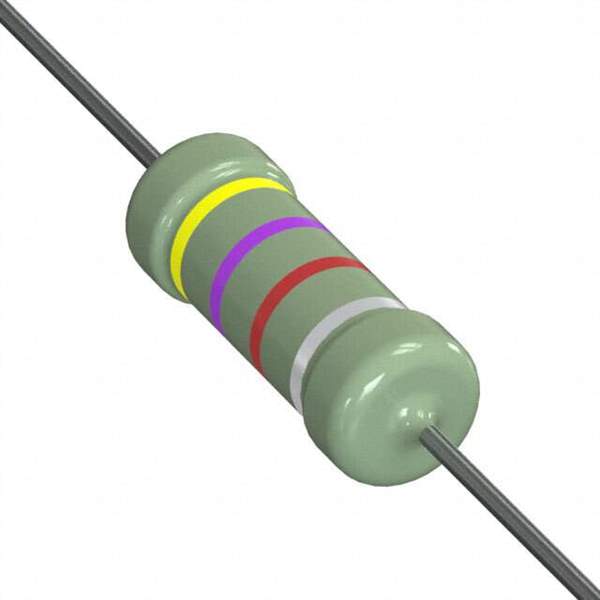

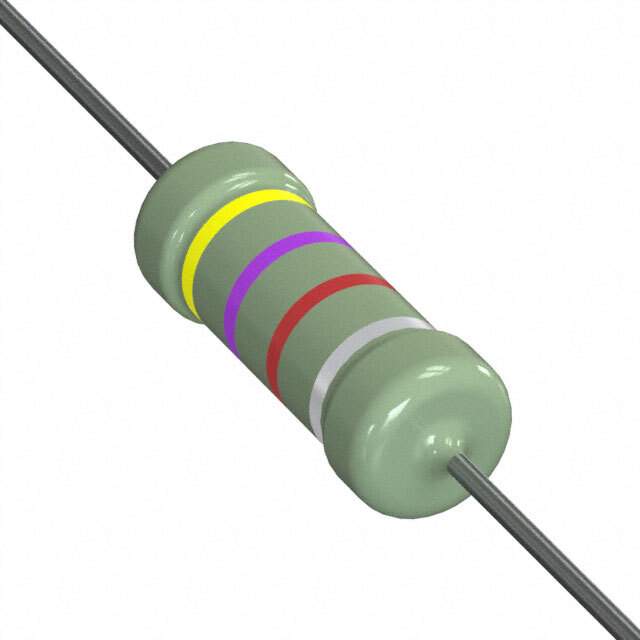

CCR24K7KB Real Image
Same model may have multiple batches, images only for reference.

CCR24K7KB

Part No CCR24K7KB
Manufacturer TE Connectivity
Catalog Through Hole Resistors
Description RES 4.7K OHM 10% 2W AXIAL  /  4.7 kOhms ±10% 2W Through Hole Resistor Axial Pulse Withstanding Ceramic
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr TE Connectivity Passive Product
Series CCR, CGS
Package Bulk
Resistance 4.7 kOhms
Tolerance ±10%
Power (Watts) 2W
Composition Ceramic
Features Pulse Withstanding
Temperature Coefficient ±1300ppm/°C
Temperature Range - Operating -40°C ~ 200°C
Package / Case Axial
Supplier Device Package Axial
Dimension 0.276" Dia x 0.748" L (7.00mm x 19.00mm)
Number of Terminations 2
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.21.0090
Other Names 1-1623720-1,1-1623720-1-ND
Standard Package 1,000
Win Source Part Number 1087129-CCR24K7KB
Ultra Librarian 3D Model Ultra Librarian CCR24K7KB CAD Model

Description

The TE Connectivity Passive Product CCR24K7KB is a through hole resistor with a resistance of 4.7 kOhms and a power rating of 2W.

  • Resistance: 4.7 kOhms
  • Power Rating: 2W
  • Tolerance: ±10%
  • Temperature Coefficient: ±1300ppm/°C
  • Application: Pulse withstanding
  • Package: Bulk
  • Standard Package: 1,000
  • Temperature Range: -40°C to 200°C
  • Compliance: EAR99
  • Cross-Reference: ROX2SJ4K7, CBT50J4K7, ROX1SJ4K7, CF14JT4K70, CF18JT4K70, CFM14JT4K70, OY472KE, OX472KE, 1879353-2, 1879351-6, and EP9WS4K7J1-1623720-1.
