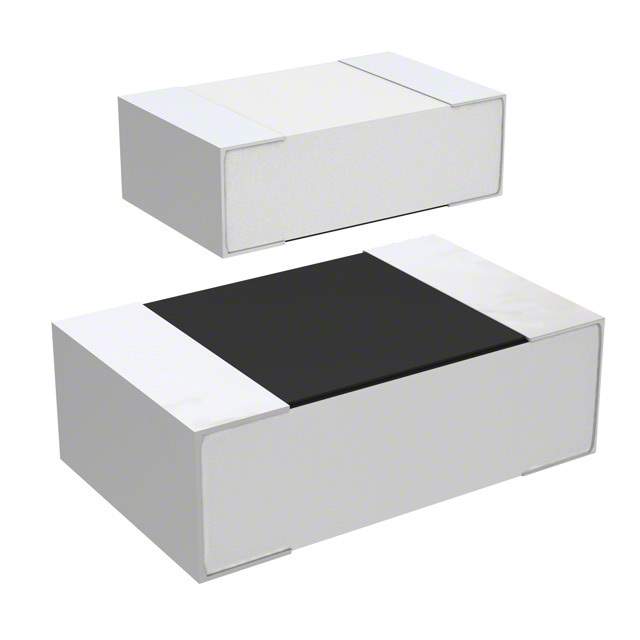

CRG0805F430R Real Image
Same model may have multiple batches, images only for reference.

CRG0805F430R

Part No CRG0805F430R
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description RES SMD 430 OHM 1% 1/8W 0805  /  430 Ohms ±1% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Thick Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series CRG, Neohm
Package Tape & Reel (TR)
Resistance 430 Ohms
Tolerance ±1%
Power (Watts) 0.125W, 1/8W
Composition Thick Film
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
Base Product Number CRG0805
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.21.0030
Other Names 1623225-1,1623225-1-ND
Standard Package 10,000
Win Source Part Number 1034923-CRG0805F430R
Ultra Librarian 3D Model Ultra Librarian CRG0805F430R CAD Model

Description

The CRG0805F430R resistor from TE Connectivity Passive Product is a thick film chip resistor that has a resistance of 430 Ohms with a tolerance of ±1%.

  • Resistance: 430 Ohms
  • Tolerance: ±1%
  • Power Rating: 0.125W
  • Operating Temperature: -55°C to 155°C
  • Package: 0805 (2012 Metric)
  • Terminations: 2
