Same model may have multiple batches, images only for reference.

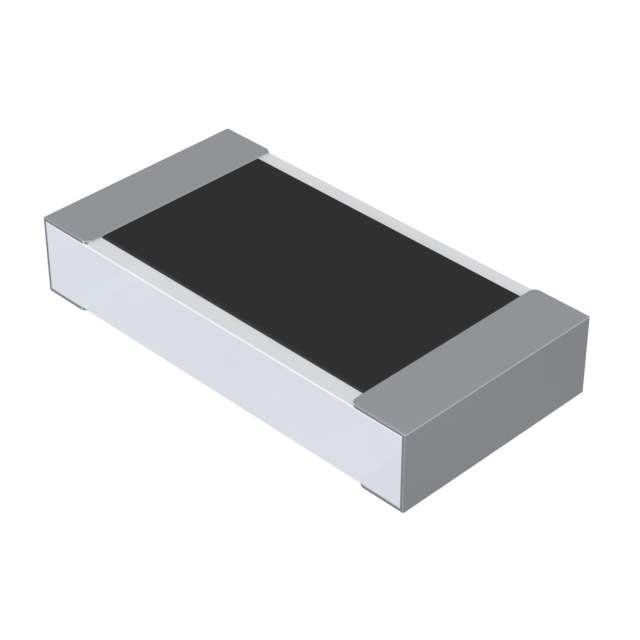

CRGCQ1206J4R7 Real Image
Same model may have multiple batches, images only for reference.

CRGCQ1206J4R7

Part No CRGCQ1206J4R7
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description RES 4.7 OHM 5% 1/4W 1206  /  4.7 Ohms ±5% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Automotive AEC-Q200, Moisture Resistant Thick Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series CRGCQ
Package Tape & Reel
Resistance 4.7 Ohms
Tolerance ±5%
Power (Watts) 0.25W, 1/4W
Composition Thick Film
Features Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient ±400ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Ratings AEC-Q200
Dimension 0.122" L x 0.061" W (3.10mm x 1.55mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.21.0030
Other Names A130163TR,2176344-5,A130163CT,A130163DKR
Standard Package 5,000
Win Source Part Number 1150227-CRGCQ1206J4R7
Ultra Librarian 3D Model Ultra Librarian CRGCQ1206J4R7 CAD Model

Description

The TE Connectivity Passive Product CRGCQ1206J4R7 is a chip resistor designed for surface mount applications.

  • Resistance: 4.7 Ohms
  • Tolerance: ±5%
  • Temperature Range: -55°C to 155°C
  • Power Rating: 0.25W
  • Applications: Variety of electronic applications, including automotive and other industrial applications
