EB0294-000 TE Connectivity
Same model may have multiple batches, images only for reference.

EB0294-000

Part No EB0294-000
Manufacturer TE Connectivity
Catalog Terminals

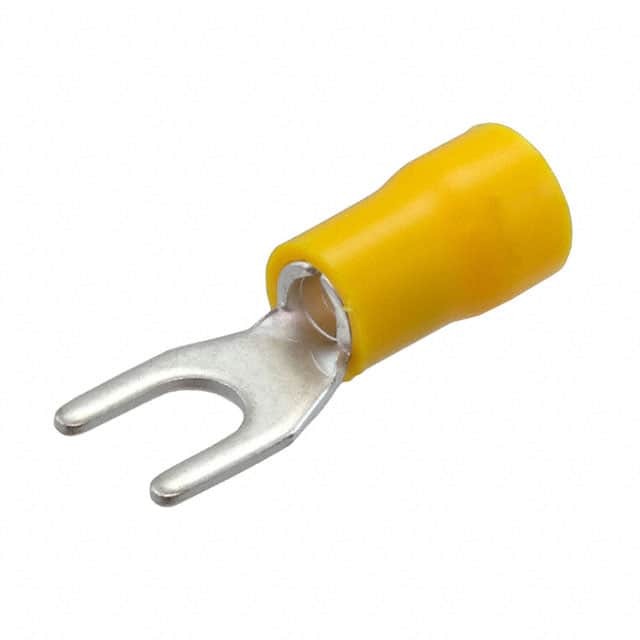

Description CPGI-2-1838180-0-50  /  Yellow M5 Stud Spade Terminal Connector Crimp 10-12 AWG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Spade Connectors
Mfr TE Energy & Utilities
Package Bulk
Product Status Obsolete
Terminal Type Standard
Stud/Tab Size M5 Stud
Width - Outer Edges 0.354" (9.00mm)
Length - Overall 1.051" (26.70mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 10-12 AWG
Insulation Insulated
Color Yellow
Contact Finish Tin
Contact Material Copper
Insulation Diameter 0.264" (6.71mm)
Material - Insulation Vinyl
Length - Termination 0.551" (14.00mm)
Base Product Number EB02
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.90.4000
Other Names 2094-EB0294-000,CPGI-2-1838180-0-50
Standard Package 5
Win Source Part Number 1041120-EB0294-000
Ultra Librarian 3D Model Ultra Librarian EB0294-000 CAD Model

Description

This spade connector is a terminal that is used for connecting wires to electrical equipment.

  • Termination Style: Crimp
  • Wire Gauge: 10-12 AWG
  • Contact Material: Copper with Tin Finish
  • Insulation Material: Vinyl
  • Terminal Type: Standard
  • Insulation Diameter: 0.264" (6.71mm)
  • Stud/Tab Size: M5 Stud
  • Mounting Type: Free Hanging (In-Line)
  • Width (Outer Edges): 0.354" (9.00mm)
  • Overall Length: 1.051" (26.70mm)
  • Color: Yellow
  • Package: Bulk
  • Standard Package: 5
