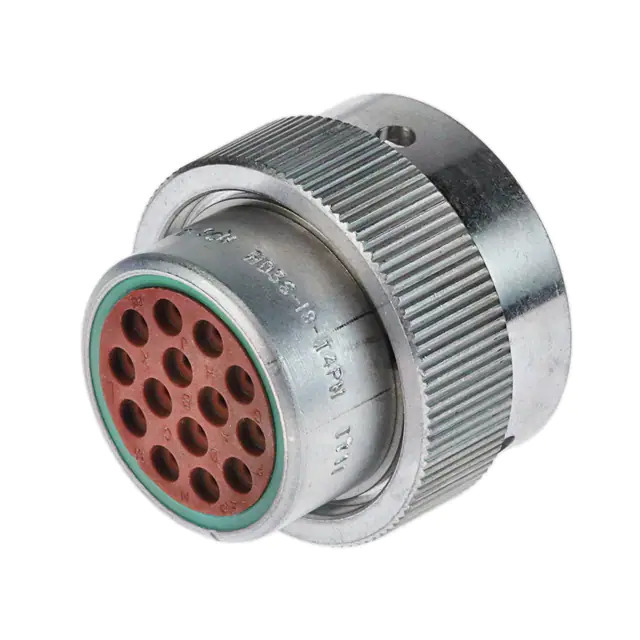

HD36-18-14PN TE Connectivity
Same model may have multiple batches, images only for reference.

HD36-18-14PN

Part No HD36-18-14PN
Manufacturer TE Connectivity
Catalog Circular Connectors - Housings
Description CONN PLUG HSG MALE 14POS INLINE / 14 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Housings
Mfr TE Connectivity Deutsch Connectors
Series HD30
Package Bulk
Product Status Active
Connector Type Plug Housing
Type For Male Pins
Number of Positions 14
Shell Size - Insert 18-14
Shell Size, MIL -
Contact Type Crimp
Contact Size 16
Mounting Type Free Hanging (In-Line)
Mounting Feature -
Fastening Type Bayonet Lock
Orientation Keyed
Shell Material Aluminum
Shell Finish -
Housing Color Silver
Ingress Protection IP67 - Dust Tight, Waterproof
Material Flammability Rating -
Features Coupling Nut
Shielding Unshielded
Note Contacts Not Included
Includes -
Insert Material Polyetherimide (PEI)
Contact Shape Circular
Temperature Range - Operating -55°C ~ 125°C
Base Product Number HD36
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1366127-HD36-18-14PN
Ultra Librarian 3D Model Ultra Librarian HD36-18-14PN CAD Model

Description

The TE Connectivity Deutsch Connectors Circular Connector Housing is a high-quality component designed for use with male pins.

  • Connector Type: Plug Housing
  • Fastening Type: Bayonet Lock
  • Number of Positions: 14
  • Shielding: Unshielded
  • Ingress Protection: IP67
  • Shell Material: Aluminum
  • Housing Color: Silver
  • Contacts Included: No
