Same model may have multiple batches, images only for reference.

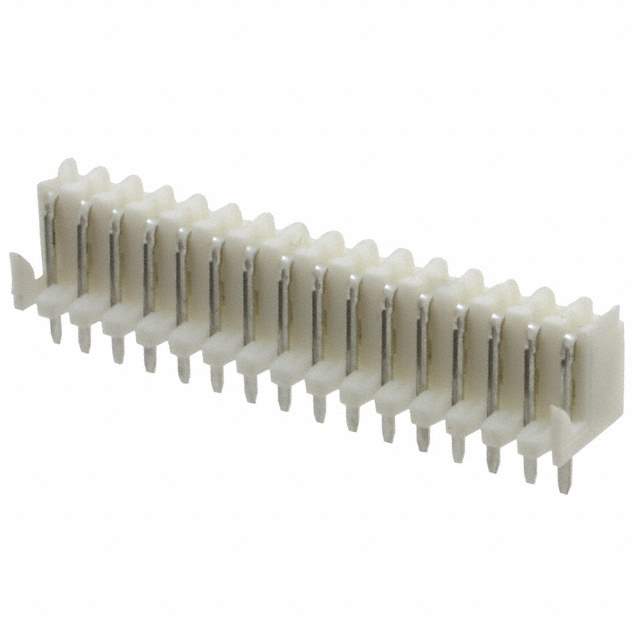

22-14-2164 Real Image
Same model may have multiple batches, images only for reference.

22-14-2164

Part No 22-14-2164
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description KK 254 PC Board Connector, Bottom Entry, 2.54µm Tin (Sn), 16 Circuits
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color White
Connector Type Receptacle, Socket
Contact Material Brass
Contact Plating Tin
Contact Resistance 20 mΩ
Country of Origin US
Current Rating 2.5 A
Depth 7.7 mm
Gender Receptacle
Housing Color White
Housing Material Nylon
Length 40.54 mm
Maximum Operating Temperature 75 °C
Min Operating Temperature 0 °C
Mount Through Hole
Number of Circuits 15
Number of Contacts 16
Number of Positions 16
Number of Rows 1
Orientation Straight
Pitch 2.54 mm
Plating Tin
RoHS Compliant
Termination Solder
Voltage Rating (DC) 250 V
Win Source Part Number 1061537-22-14-2164
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 22-14-2164 CAD Model

Description

This high-quality electronic component is a 16-position, 2.54mm pitch connector manufactured by Molex, LLC.

  • Manufacturer: Molex, LLC
  • Positions: 16
  • Pitch: 2.54mm
  • Color: White
  • Housing Material: Nylon
  • Current Rating: 2.5A
  • Circuits: 15
  • RoHS Compliant: Yes
  • Orientation: Straight
  • Maximum Operating Temperature: 75°C
  • Minimum Operating Temperature: 0°C
