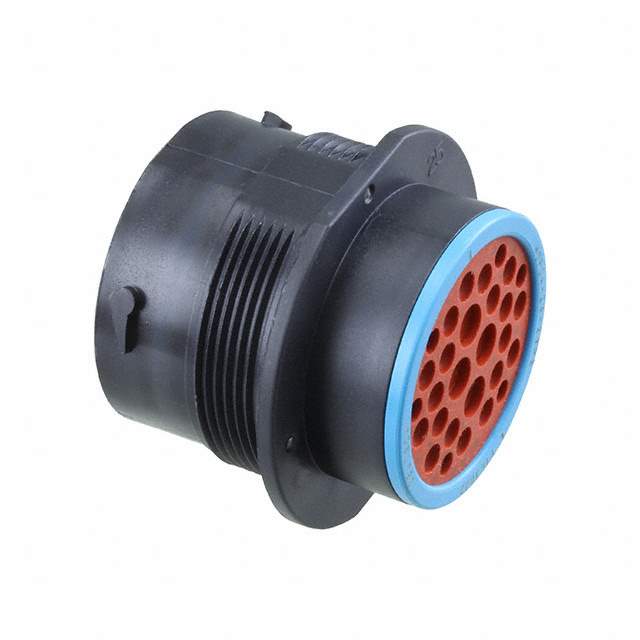

HDP24-24-29PE Real Image
Same model may have multiple batches, images only for reference.

HDP24-24-29PE

Part No HDP24-24-29PE
Manufacturer TE Connectivity
Catalog Circular Connectors - Housings
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Housings
Mfr TE Connectivity Deutsch Connectors
Series HDP20
Package Bulk
Connector Type Receptacle Housing
Type For Male Pins
Number of Positions 29
Shell Size - Insert 24-29
Contact Type Crimp
Contact Size 12 (4), 16 (19), 20 (6)
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Fastening Type Bayonet Lock
Orientation Keyed
Shell Material Polyamide (PA66), Nylon 6/6, Glass Filled
Housing Color Black
Ingress Protection IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-1
Features Dust Cap
Shielding Unshielded
Note Contacts Not Included; Jam Nut Not Included
Insert Material Polyetherimide (PEI)
Contact Shape Circular
Temperature Range - Operating -55°C ~ 125°C
Base Product Number HDP24
Other Names -HDP24-24-29PE-SI,1734-1206,-HDP24-24-29PE-CSI
Standard Package 30
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1294235-HDP24-24-29PE
Ultra Librarian 3D Model Ultra Librarian HDP24-24-29PE CAD Model

Description

The TE Connectivity Deutsch Connectors HDP20 series is a high-quality circular connector housing. This particular product, the HDP24-24-29PE, is designed for male pins and has 29 positions.

  • Feature: Dust cap
  • Connector Type: Receptacle housing
  • Contact Type: Crimp
  • Fastening Type: Bayonet lock
  • Shell Material: Polyamide (PA66), Nylon 6/6, Glass Filled
  • Insert Material: Polyetherimide (PEI)
  • Ingress Protection: IP68 (dust tight and waterproof)
  • Mounting: Panel mounting
  • Mounting Feature: Bulkhead-front side nut
