Same model may have multiple batches, images only for reference.

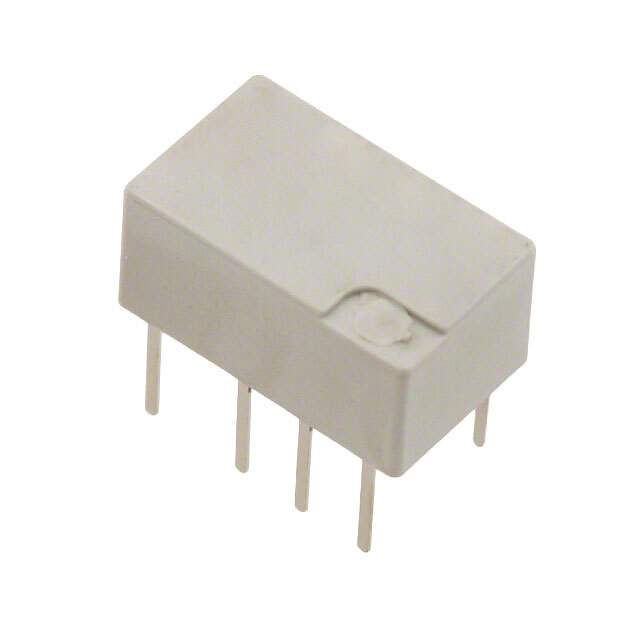

IM06TS Real Image
Same model may have multiple batches, images only for reference.

IM06TS

Part No IM06TS
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description The Best Relaytion | RELAY TELECOM DPDT 2A 12VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube
Mounting Style Through Hole
Coil Voltage 12VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2A
Switching Voltage 250VAC, 220VDC - Max
Coil Current 11.6mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Hermetically
Must Operate Voltage 9 VDC
Must Release Voltage 1.2 VDC
Operate Time 3ms
Release Time 3ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Palladium (Pd), Ruthenium (Ru), Gold (Au)
Relay Type Telecom
Coil Resistance 1.03 kOhms
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 1185540-IM06TS
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial, Power Management, Automation & Process Control, Consumer Electronics, Test & Measurement, Automotive, Portable Devices
Ultra Librarian 3D Model Ultra Librarian IM06TS CAD Model

Description

The IM06TS from TE Connectivity Potter & Brumfield Relays is a DPDT telecom relay.

  • Coil Voltage: 12VDC
  • Contact Rating: 2A
  • Relay Type: Non-Latching
  • Mounting Style: Through-Hole
  • Seal Type: Sealed Hermetically
  • Temperature Range: -40°C to 85°C
  • Application: Widely used in industrial, power management, automation and process control, consumer electronics, test and measurement, automotive, and portable devices.
  • Supply and Demand Status: Limited
  • Popularity: Popular in the market
