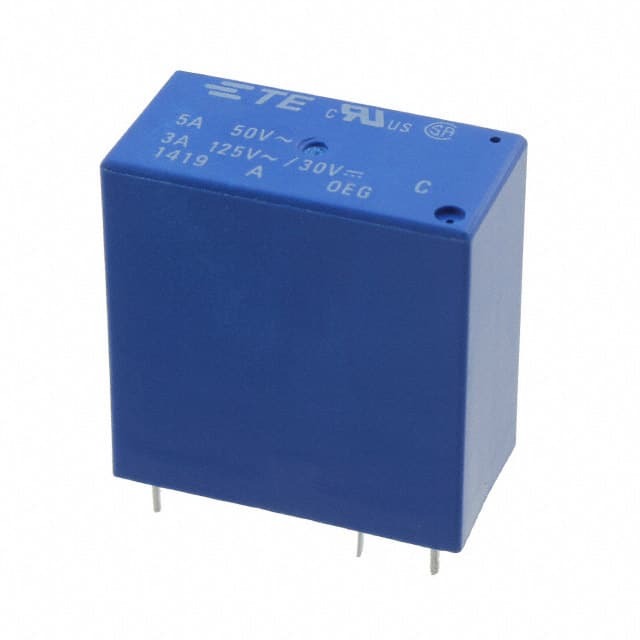

OSA-SS-224DM3,000 TE Connectivity
Same model may have multiple batches, images only for reference.

OSA-SS-224DM3,000

Part No OSA-SS-224DM3,000
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series OSA, OEG
Package Bulk
Product Status Last Time Buy
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form DPST-NO (2 Form A)
Contact Rating (Current) 3 A
Switching Voltage 240VAC, 30VDC - Max
Coil Current 22.5 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Must Operate Voltage 18 VDC
Must Release Voltage 1.2 VDC
Operate Time 20 ms
Release Time 10 ms
Temperature Range - Operating -30°C ~ 60°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 1.1 kOhms
Base Product Number OSA-SS
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1315522-OSA-SS-224DM3,000
Ultra Librarian 3D Model Ultra Librarian OSA-SS-224DM3,000 CAD Model

Description

The OSA-SS-224DM3,000 is a DPST-NO (2 Form A) relay from the OSA series of OEG.

  • Contact Form: DPST-NO (2 Form A)
  • Relay Type: General-Purpose
  • Coil Voltage: 24VDC
  • Contact Rating: 3A
  • Contact Material: Silver Alloy
  • Switching Voltage: 240VAC and 30VDC (Maximum)
  • Latching: Non-Latching
  • Coil Resistance: 1.1 kOhms
  • Coil Current: 22.5 mA
  • Operate Time: 20 ms
  • Release Time: 10 ms
  • Seal: Flux Protection
  • Mounting Type: Through-Hole
  • Temperature Range: -30°C to 60°C
