Same model may have multiple batches, images only for reference.

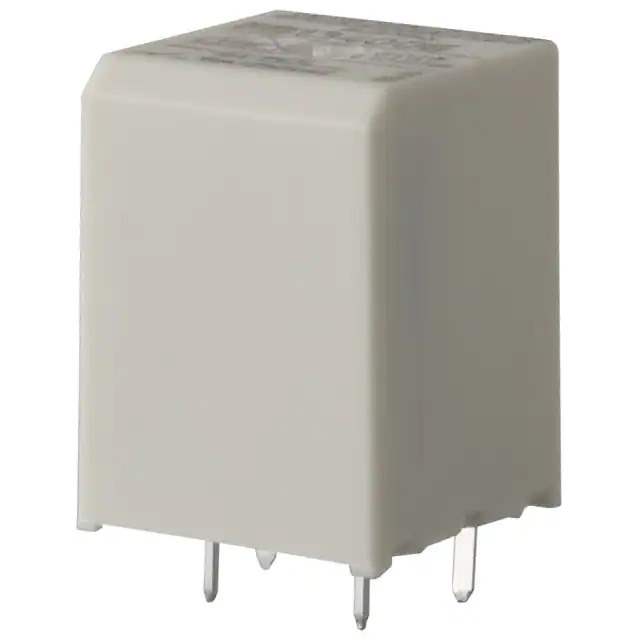

PB114012 Real Image
Same model may have multiple batches, images only for reference.

PB114012

Part No PB114012
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 10A 12V / General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr TE Connectivity
Series PB, SCHRACK
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 10 A
Switching Voltage 400VAC - Max
Coil Current 30 mA
Coil Type Non Latching
Termination Style PC Pin
Coil Insulation Class F
Must Operate Voltage 9 VDC
Must Release Voltage 1.2 VDC
Operate Time 10 ms
Release Time 20 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 400 Ohms
Base Product Number PB11
Standard Package 35 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 652687-PB114012
Ultra Librarian 3D Model Ultra Librarian PB114012 CAD Model

Description

The PB114012 is a power relay from TE Connectivity's PB series.

  • Contact Form: SPDT (1 Form C)
  • Coil Voltage: 12VDC
  • Coil Resistance: 400 Ohms
  • Contact Rating: 10 A
  • Switching Voltage: 400VAC
  • Relay Type: Non-latching
  • Operating Temperature: -40°C to 85°C
  • Mounting Design: Through-hole
