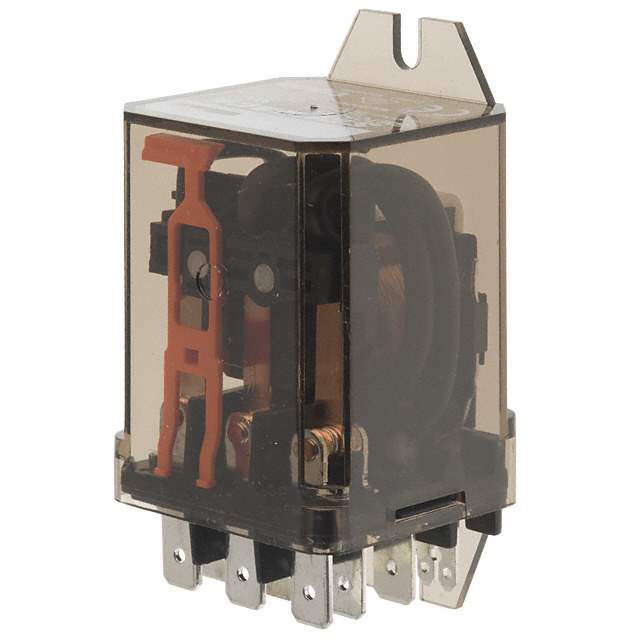

RM805012

Part No RM805012
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 25A 12V / General Purpose Relay DPDT (2 Form C) 12VDC Coil Chassis Mount
Datasheet
RM805012 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity
Series RM, SCHRACK
Package Bulk
Product Status Obsolete
Mounting Type Chassis Mount
Coil Voltage 12VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 25 A
Switching Voltage 400VAC - Max
Coil Current 109 mA
Coil Type Non Latching
Features Mechanical Indicator
Termination Style Quick Connect - 0.250" (6.3mm)
Seal Rating -
Coil Insulation -
Must Operate Voltage 9 VDC
Must Release Voltage 1.2 VDC
Operate Time 15 ms
Release Time 10 ms
Temperature Range - Operating -45°C ~ 65°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 110 Ohms
Base Product Number RM80
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Standard Package 25 pcs
Win Source Part Number 1383332-RM805012
Ultra Librarian 3D Model Ultra Librarian RM805012 CAD Model

Description

The RM805012 is a DPDT (2 Form C) power relay from the RM series by SCHRACK.

  • Coil Voltage: 12VDC
  • Coil Resistance: 110 Ohms
  • Contact Rating: 25A
  • Maximum Switching Voltage: 400VAC
  • Operate Time: 15ms
  • Release Time: 10ms
  • Termination Style: Quick Connect, 0.250" (6.3mm)
  • Relay Type: General Purpose
  • Latching: Non-Latching
  • Indicator: Mechanical Indicator
  • Mounting Type: Chassis Mount
  • Temperature Range: -45°C to 65°C
