Same model may have multiple batches, images only for reference.

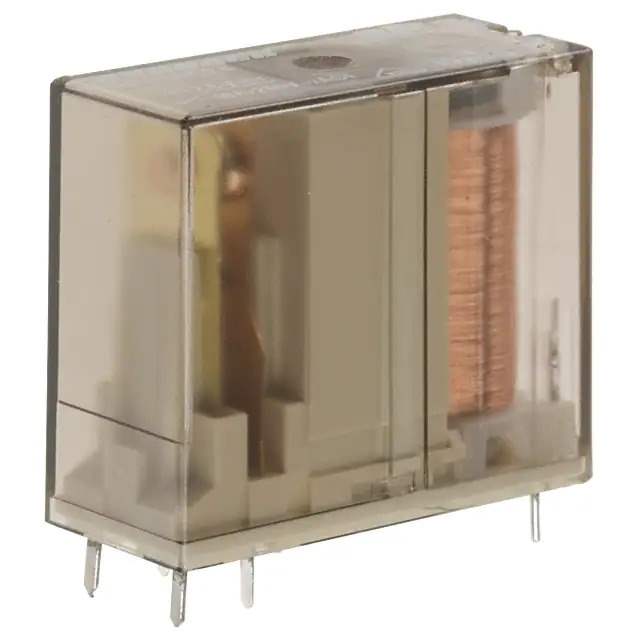

RP330012 Real Image
Same model may have multiple batches, images only for reference.

RP330012

Part No RP330012
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Datasheet
RP330012 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr TE Connectivity
Series RP II/1, SCHRACK
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16 A
Switching Voltage 400VAC - Max
Coil Current 44.4 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 8 ms
Release Time 2 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 270 Ohms
Base Product Number RP33
Standard Package 20 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 932387-RP330012
Ultra Librarian 3D Model Ultra Librarian RP330012 CAD Model

Description

The 859873 relay from TE Connectivity is a power relay designed for various applications.

  • Manufacturer: TE Connectivity
  • Series: RP II/1 and SCHRACK
  • Termination Style: PC Pin
  • Package: Tube
  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: Silver Cadmium Oxide (AgCdO)
  • Coil Resistance: 270 Ohms
  • Coil Current: 44.4 mA
  • Operate Time: 8 ms
  • Release Time: 2 ms
  • Coil Voltage: 12VDC
  • Contact Rating: 16 A
  • Switching Voltage: 400VAC maximum
  • Type: General Purpose
  • Sealed: Flux Protection
  • Mounting Type: Through Hole
  • Operating Temperature: -40°C to 70°C
  • ECCN: EAR99
  • Status: Obsolete
