Same model may have multiple batches, images only for reference.

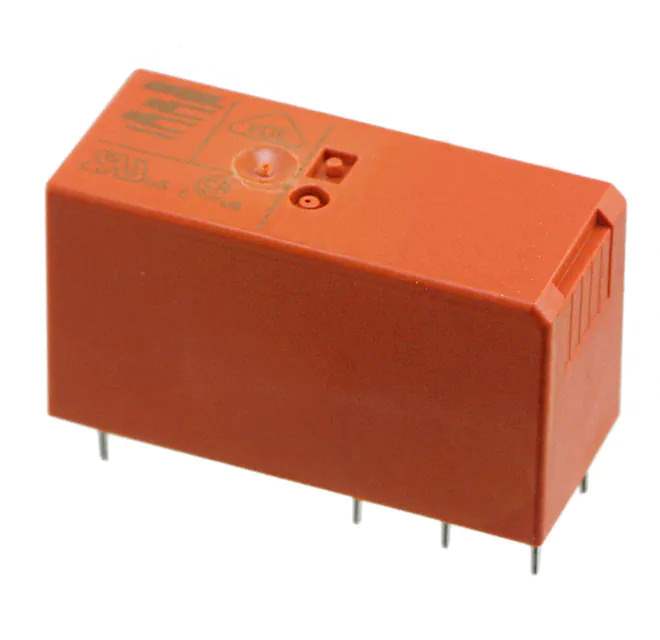

RT314F12 Real Image
Same model may have multiple batches, images only for reference.

RT314F12

Part No RT314F12
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 16A 12V / General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr TE Connectivity
Series RT1 Bistable, SCHRACK
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 16 A
Switching Voltage 400VAC - Max
Coil Current 50 mA
Coil Type Latching, Dual Coil
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class F
Must Operate Voltage 8.4 VDC
Operate Time 10 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 240 Ohms
Base Product Number RT314
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 661398-RT314F12
Ultra Librarian 3D Model Ultra Librarian RT314F12 CAD Model

Description

The RT1 bistable power relay is a high-quality and reliable component for various applications.

  • Contact Form: SPDT
  • Coil Voltage: 12VDC
  • Coil Resistance: 240 Ohms
  • Coil Current: 50mA
  • Contact Rating: 16A
  • Switching Voltage: 400VAC
  • Protection: sealed for flux protection
  • Operating Temperature: -40°C to 85°C
  • Coil Type: latching
  • Release Time: 10ms
  • Mounting: through-hole
  • Standard Package: 20 pieces
  • Commonly Used: general-purpose applications
