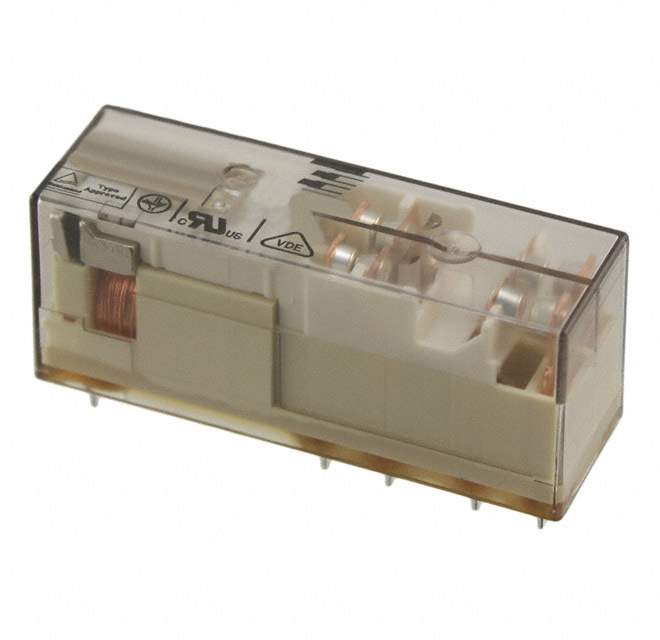

SR4D4012 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube
Mounting Style Through Hole
Coil Voltage 12VDC
Contact Form 4PST-2NO/2NC (2 Form A, 2 Form B)
Contact Rating (Current) 8A
Switching Voltage 400VAC - Max
Termination Style PC Pin
Must Operate Voltage 9 VDC
Must Release Voltage 1.2 VDC
Temperature Range - Operating -25°C ~ 70°C
Contact Material Silver Tin Oxide (AgSnO)
Coil Current 66.7mA
Coil Power 800mW
Coil Resistance 180 Ohms
Manufacturer Pack Quantity 250
MSL Level 1 (Unlimited)
Win Source Part Number 1258625-SR4D4012
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SR4D4012 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays is a 4PST-2NO/2NC (2 Form A, 2 Form B) relay that has a contact rating of 8A and a switching voltage of 400VAC - Max.

  • Contact Configuration: 4PST-2NO/2NC (2 Form A, 2 Form B)
  • Contact Rating: 8A
  • Switching Voltage: 400VAC - Max
  • Coil Resistance: 180 Ohms
  • Coil Current: 66.7mA
  • Coil Voltage: 12VDC
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Mounting Style: Through Hole
  • Termination: PC Pin
  • Temperature Range: -25°C to 70°C
  • Supply and Demand: Limited
  • Manufacturer Pack Quantity: 250
  • MSL Level: 1 (Unlimited)
  • Must Operate Voltage: 9VDC
  • Must Release Voltage: 1.2VDC
