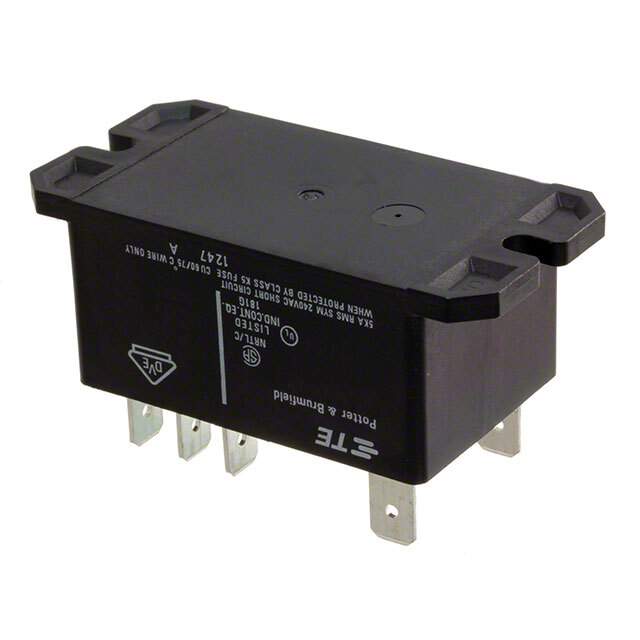

T92S11A22-240 Real Image
Same model may have multiple batches, images only for reference.

T92S11A22-240

Part No T92S11A22-240
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description 2 pole 30 A, 2 CO or 2 NO contacts | RELAY GEN PURPOSE DPDT 30A 240V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Bulk
Mounting Style Chassis Mount
Coil Voltage 240VAC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 30A
Switching Voltage 277VAC - Nom
Coil Current 16.7mA
Coil Type Non Latching
Termination Style Quick Connect - 0.250" (6.3mm)
Coil Insulation Class F
Must Operate Voltage 192 VAC
Must Release Voltage 24 VAC
Operate Time 15ms
Release Time 15ms
Temperature Range - Operating -55°C ~ 65°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 3.8 kOhms
Manufacturer Pack Quantity 30
MSL Level Not Applicable
Win Source Part Number 1263534-T92S11A22-240
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian T92S11A22-240 CAD Model

Description

This TE Connectivity Potter & Brumfield Relays electronic component is a DPDT (2 Form C) general purpose relay with a contact rating (current) of 30A and a switching voltage of 277VAC - Nom.

  • Contact Arrangement: DPDT (2 Form C)
  • Contact Rating (Current): 30A
  • Switching Voltage: 277VAC - Nom
  • Coil Voltage: 240VAC
  • Coil Resistance: 3.8 kOhms
  • Coil Current: 16.7mA
  • Operate Time: 15ms
  • Release Time: 15ms
  • Contact Material: Silver cadmium oxide (AgCdO)
  • Coil Type: Non-latching
  • Mounting Style: Chassis mount
  • Termination Style: Quick connect - 0.250" (6.3mm)
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 30
  • Coil Insulation: Class F
  • Must Operate Voltage: 192VAC
  • Must Release Voltage: 24VAC
