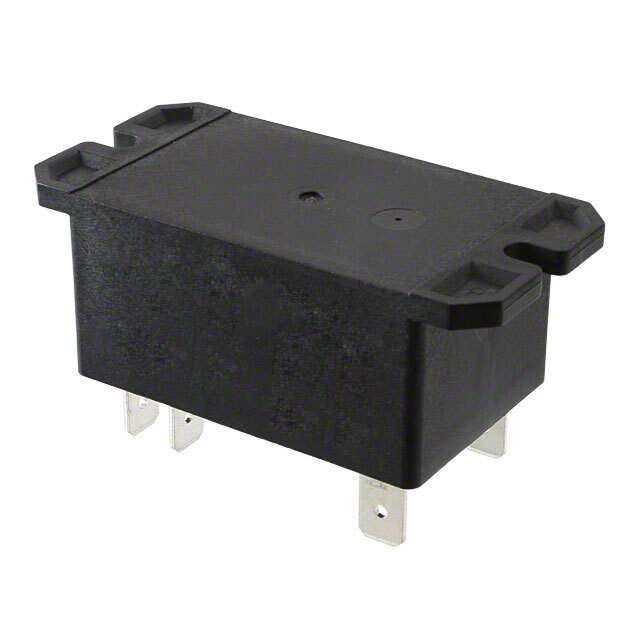

T92S7D22-24 Real Image
Same model may have multiple batches, images only for reference.

T92S7D22-24

Part No T92S7D22-24
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPST 30A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Estimated Pruduction Lead Time 20 Weeks
Features General Purpose Relay DPST-NO (2 Form A) 24VDC Coil Chassis Mount
Manufacturer TE Connectivity
Series T92
Package Bulk
Operating Temperature Range -55°C ~ 85°C
Mounting Chassis Mount
Family Name T92S7
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.41.0050
Other Part Number -T92S7D22-24-SI, 1-1393212-7, T92S7D2224, PB299, PB299-NDR
Quantity per package 30
Popularity High
Supply and Demand Status Balance
Win Source Part Number 898972-T92S7D22-24
Ultra Librarian 3D Model Ultra Librarian T92S7D22-24 CAD Model

Description

The TE Connectivity T92S7D22-24 is a general-purpose relay with DPST-NO (2 Form A) contact configuration and 24VDC coil voltage.

  • Contact Configuration: DPST-NO (2 Form A)
  • Coil Voltage: 24VDC
  • Mounting: Chassis Mount
  • Operating Temperature: -55°C to 85°C
  • Family: T92
  • Packaging: Bulk
  • Popularity: Highly Popular
  • Supply and Demand: Balanced
  • ECCN: EAR99
  • REACH: REACH affected
  • Estimated Production Lead Time: 20 weeks
