Same model may have multiple batches, images only for reference.

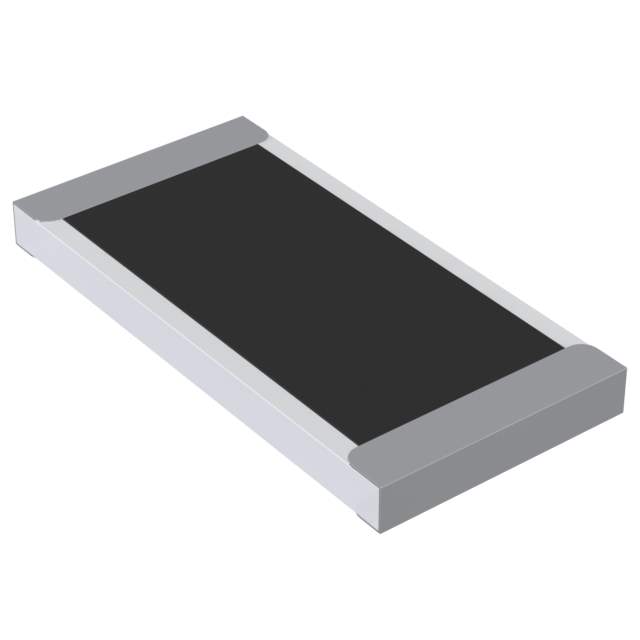

TLR3A20DR01FTDG Real Image
Same model may have multiple batches, images only for reference.

TLR3A20DR01FTDG

Part No TLR3A20DR01FTDG
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description RES 0.01 OHM 1% 2W 2512
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Features 10 mOhms ±1% 2W Chip Resistor 2512 (6432 Metric) Current Sense Metal Foil
Manufacturer TE Connectivity
Series TLR, CGS
Package Reel - TR
Part Status Obsolete
Operating Temperature Range -55°C ~ 170°C
Package 2512 (6432 Metric)
Case / Package 2512
Family Name TLR3A20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number A129460CT, 2-1879378-1, A129460DKR, TLR3A20DR01FTDG-ND, A129460TR
Quantity per package 2000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 936835-TLR3A20DR01FTDG
Ultra Librarian 3D Model Ultra Librarian TLR3A20DR01FTDG CAD Model

Description

The TE Connectivity TLR3A20DR01FTDG is a high-quality chip resistor designed for use in electronic devices. It has a resistance of 10 mOhms ±1% and a power rating of 2W.

  • Resistance: 10 mOhms ±1%
  • Power Rating: 2W
  • Series: TLR and CGS
  • Package: 2512 (6432 Metric)
  • Operating Temperature Range: -55°C to 170°C
  • Popularity: High
  • Status: Obsolete
  • Package: Reel
  • Quantity per Package: 2000
  • ECCN: EAR99
  • HTSUS: 8533.21.0030
