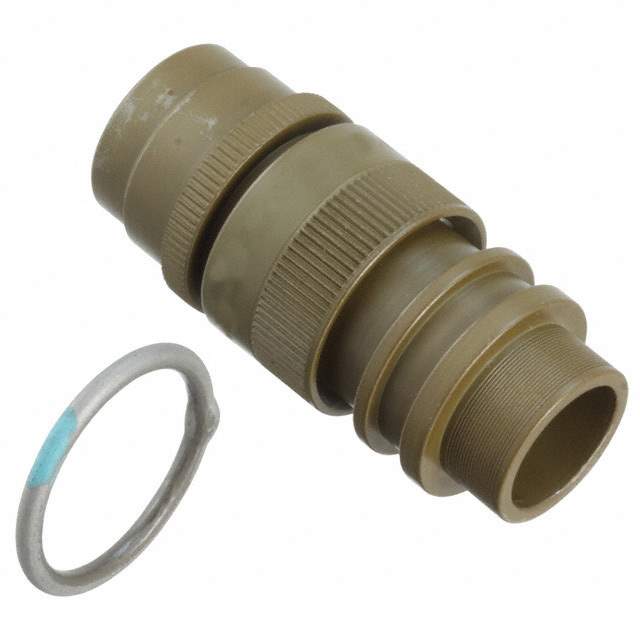

TXR40AB00-1008AI Real Image
Same model may have multiple batches, images only for reference.

TXR40AB00-1008AI

Part No TXR40AB00-1008AI
Manufacturer TE Connectivity
Catalog Circular Connectors
Description CONN BACKSHELL ADPT SZ 11B OLIVE  /  Olive Drab Connector Backshell, Heat Shrink Adapter M15x1 11, B
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Backshells and Cable Clamps
Mfr TE Connectivity Aerospace, Defense and Marine
Series TXR
Package Bulk
Type Backshell, Heat Shrink Adapter
Diameter - Outside 0.827" (21.00mm)
Shell Size - Insert 11, B
Thread Size M15x1
Cable Exit 180°
Material Aluminum Alloy
Plating Cadmium
Shielding Shielded
Color Olive Drab
Features Tinel Lock
Ingress Protection Environment Resistant
Includes 6 pcs - 2 pc Backshell, 1 Braid, 2 O-Rings, 1 Tinel Ring
For Use With/Related Products MIL-DTL-38999 Series III, IV
Base Product Number TXR40AB00
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8538.90.8180
Other Names A101196,TXR40AB001008AI,515403-000,TXR40AB00-1008AI-ND
Standard Package 1
Win Source Part Number 1039057-TXR40AB00-1008AI
Ultra Librarian 3D Model Ultra Librarian TXR40AB00-1008AI CAD Model

Description

The TXR40AB00-1008AI backshell is a circular connector that is used in conjunction with MIL-DTL-38999 Series III and IV.

  • Material: Aluminum Alloy
  • Resistant: Environment-Resistant
  • Plating: Cadmium
  • Color: Olive Drab
  • Feature: Tinel Lock
  • Package Includes: 6 Pieces (2 Backshells, 1 Braid, 2 O-Rings, 1 Tinel Ring)
  • Cable Exit: 180 Degrees
  • Thread Size: M15x1
  • Diameter Outside: 0.827 inches (21.00mm)
  • Shielded: Yes
  • Shell Size-Insert: 11, B
  • Material Flammability Rating: Not Available
  • Packaging: Bulk
