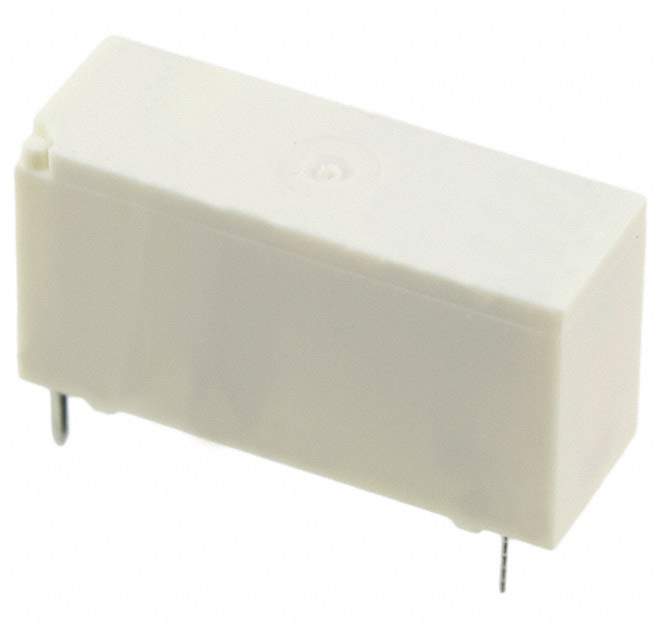

V23061B1005A301 Real Image
Same model may have multiple batches, images only for reference.

V23061B1005A301

Part No V23061B1005A301
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 8A 12V / Power Relay 12VDC 15A SPDT(30x10x15)mm THT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Series MSR, SCHRACK
Packaging Tube
Relay Type General
Coil Type Non Latching
Coil Current 18.4mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 8A
Switching Voltage 400VAC - Max
Turn On Voltage (Maximum) 8.2 VDC
Turn Off Voltage (Minimum) 1.2 VDC
Operate Time 10ms
Release Time 5ms
Features Insulation - Class A, Sealed - Fully
Mounting Style Through Hole
Termination Style PC Pin
Contact Material Silver Tin Oxide (AgSnO)
Coil Power 221 mW
Coil Resistance 652 Ohms
Operating Temperature Range -40°C ~ 85°C
Win Source Part Number 798962-V23061B1005A301
Popularity Medium
Supply and Demand Status Limited
Family Name V23061
ECCN EAR99
Country of Origin Czech Republic
Halogen Free Not Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian V23061B1005A301 CAD Model

Description

The V23061B1005A301 is a general relay from the MSR, SCHRACK series manufactured by TE Connectivity Potter & Brumfield Relays.

  • Contact Form: SPDT (1 Form C)
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Coil Voltage: 12VDC
  • Coil Resistance: 652 Ohms
  • Coil Current: 18.4mA
  • Contact Rating: 8A
  • Switching Voltage: 400VAC - Max
  • Packaging: Tube
  • Termination Style: PC pin
  • Mounting Style: Through-hole
  • Operating Temperature Range: -40°C ~ 85°C
  • Insulation: Class A
  • Sealed: Fully
