Same model may have multiple batches, images only for reference.

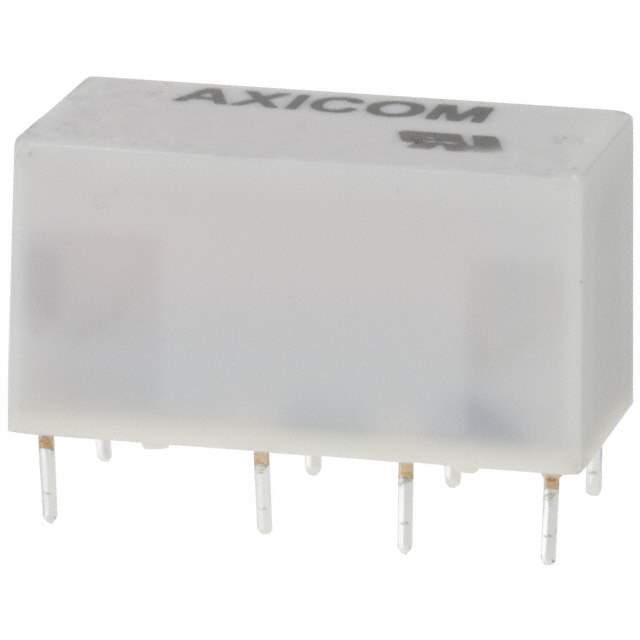

V23105A5005A201 Real Image
Same model may have multiple batches, images only for reference.

V23105A5005A201

Part No V23105A5005A201
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series V23105, AXICOM
Package Tube
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 3 A
Switching Voltage 250VAC, 220VDC - Max
Coil Current 6.3 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 19.2 VDC
Must Release Voltage 1.2 VDC
Operate Time 6 ms
Release Time 4 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type Telecom
Coil Resistance 3.84 kOhms
Base Product Number V23105
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1315150-V23105A5005A201
Ultra Librarian 3D Model Ultra Librarian V23105A5005A201 CAD Model

Description

The TE Connectivity V23105A5005A201 is a DPDT (2 Form C) power relay with a coil voltage of 24VDC. V23105A5005A201 from TE Connectivity

  • Contact Form: DPDT (2 Form C)
  • Coil Voltage: 24VDC
  • Switching Voltage: 250VAC and 220VDC
  • Operating Temperature: -40°C to 85°C
  • Must Operate Voltage: 19.2VDC
