Same model may have multiple batches, images only for reference.

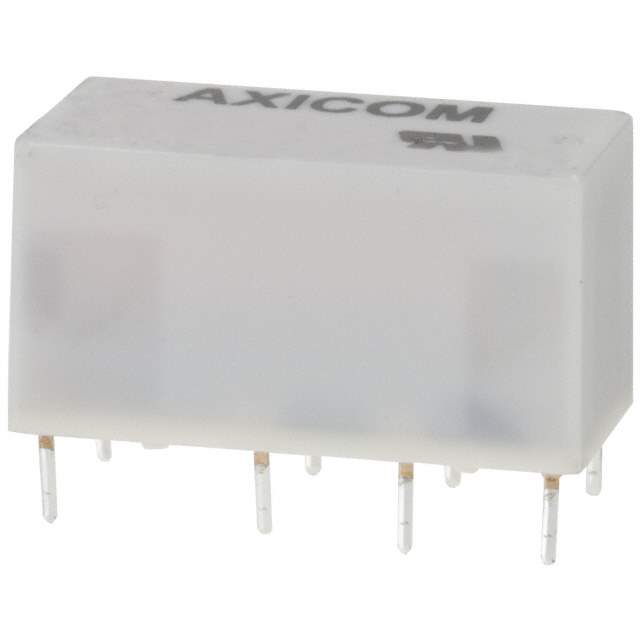

V23105A5475A201 Real Image
Same model may have multiple batches, images only for reference.

V23105A5475A201

Part No V23105A5475A201
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY TELECOM DPDT 3A 5V / Telecom Relay DPDT (2 Form C) 5VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series V23105, AXICOM
Package Tube
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 3 A
Switching Voltage 250VAC, 220VDC - Max
Coil Current 139 mA
Coil Type Non Latching
Termination Style PC Pin
Operate Time 6 ms
Release Time 4 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type Telecom
Coil Resistance 36 Ohms
Base Product Number V23105
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Other Names V23105A5475A201-ND,PB2126,1-1393793-2
Standard Package 25
Win Source Part Number 1103612-V23105A5475A201
Ultra Librarian 3D Model Ultra Librarian V23105A5475A201 CAD Model

Description

The V23105A5475A201 electronic component is a power relay manufactured by TE Connectivity Potter & Brumfield Relays. TE Connectivity Potter & Brumfield Relays V23105A5475A201 falls under the category of relays>power relays, over 2 amps.

  • Series: V23105, AXICOM
  • Termination Style: PC Pin
  • Package: Tube
  • Contact Form: DPDT (2 Form C)
  • Contact Material: Silver nickel (AgNi)
  • Coil Resistance: 36 Ohms
  • Coil Current: 139 mA
  • Operate Time: 6 ms
  • Relay Type: Telecom
  • Coil Type: Non-latching
  • Coil Voltage: 5VDC
  • Contact Rating (Current): 3 A
  • Switching Voltage: 250VAC, 220VDC - Max
  • Release Time: 4 ms
  • Mounting Type: Through hole
  • Temperature Range - Operating: -40 degrees Celsius to 85 degrees Celsius
