The 74ACT16863DL is a high-performance, 16-bit transceiver from Texas Instruments, designed to facilitate bidirectional communication between two data buses. This integrated circuit (IC) is part of the 74ACT family, which is renowned for its advanced CMOS logic operating at high speeds with minimal power consumption.

Key Features

• High Speed: The device operates at a fast pace, ensuring quick data transfer, which is essential for modern high-speed applications.
• Low Power Dissipation: It has a reduced power consumption profile, making it suitable for power-sensitive designs.
• Wide Operating Voltage Range: The 74ACT16863DL can function over a wide voltage range, accommodating various levels of signal voltages and providing design flexibility.
• Non-Inverting Buffers: This IC features non-inverting buffers, which maintain the integrity of the signal without altering its phase.
• Direction Control: Direction control inputs (DIR) dictate the data flow, allowing for versatile control over the transceiving operations.
• Output Enable Inputs: Output enable (OE) inputs provide additional control, allowing the user to place the outputs in high-impedance states as needed.
• Bus-Hold Data Inputs: These inputs eliminate the need for external pull-up or pull-down resistors, simplifying PCB design and reducing component count.

Applications

The 74ACT16863DL is ideal for a variety of applications where efficient data transfer between two buses is required. It is commonly used in:

• Communication systems
• Data processing units
• Control systems
• Computing devices

Quality and Reliability

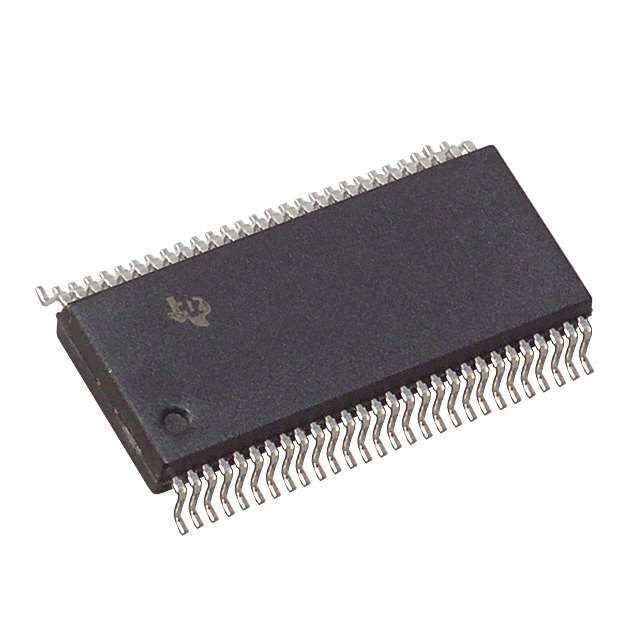

Texas Instruments is committed to delivering high-quality and reliable components. The 74ACT16863DL is manufactured with this commitment in mind, ensuring it meets the rigorous standards expected from Texas Instruments products. It is available in a 56-pin SSOP (Shrink Small-Outline Package) that provides a compact footprint while allowing for adequate pin spacing for ease of PCB routing.

Ordering Information

To purchase the 74ACT16863DL or to obtain more detailed specifications, visit the Texas Instruments website or contact an authorized distributor. Texas Instruments provides comprehensive technical support and documentation to assist with your design and integration needs.
