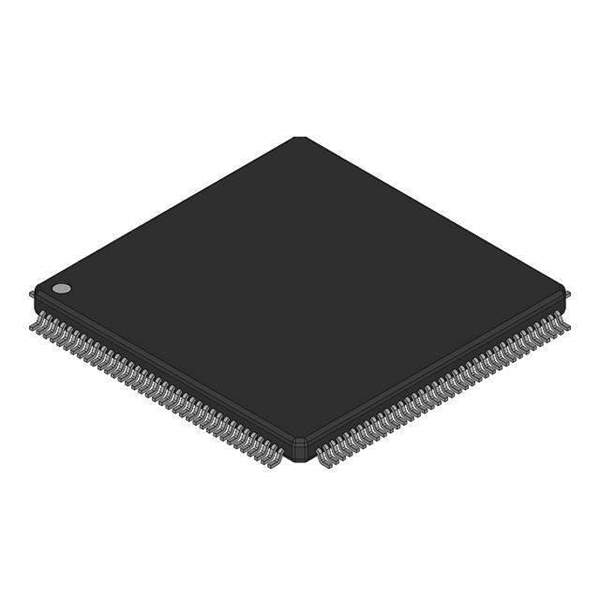

Product Overview: ADC08DL502CIVV/NOPB by Texas Instruments

The ADC08DL502CIVV/NOPB is a state-of-the-art analog-to-digital converter (ADC) developed by Texas Instruments, renowned for its precision and performance in processing analog signals. This high-speed ADC is designed for applications that require fast data acquisition and processing, such as medical imaging, test and measurement equipment, and communication systems.

Key Features

• Resolution: The ADC08DL502CIVV/NOPB boasts an 8-bit resolution, providing a fine level of detail in the digital representation of the analog input signal.
• Sampling Rate: With a maximum sampling rate of 500 MSPS (Mega Samples Per Second), this converter is capable of handling high-speed signals without compromising on accuracy or performance.
• Dual Channel: It features a dual-channel design that allows for simultaneous sampling of two analog signals, which is particularly useful in applications where phase coherence and timing between multiple channels are critical.
• Input Range: The device supports a flexible input range, catering to a variety of signal levels and ensuring compatibility with a broad array of input sources.
• Interface: The ADC08DL502CIVV/NOPB includes a user-friendly parallel LVDS (Low-Voltage Differential Signaling) output interface, which ensures high-speed data transmission with minimal signal degradation over longer distances.
• Power Consumption: It is designed with power efficiency in mind, featuring low power consumption that makes it suitable for portable and battery-powered applications.
• Package: The converter comes in a compact VQFN (Very-thin Quad Flat Non-leaded) package, which is ideal for space-constrained applications.

Applications

The ADC08DL502CIVV/NOPB is versatile and can be used across various industries and applications. Its high-speed and precision make it an excellent choice for:

• Medical Imaging Systems
• Professional Video Cameras
• Digital Oscilloscopes
• Wireless Communication Infrastructure
• Radar and Satellite Communication Systems

With its robust design and advanced features, the ADC08DL502CIVV/NOPB from Texas Instruments is a reliable and efficient solution for converting analog signals into digital form, enabling enhanced processing and analysis in complex electronic systems.
