Product Overview: ADC1175-50CILQ/NOPB

The ADC1175-50CILQ/NOPB is a high-performance, low-power, single-channel Analog-to-Digital Converter (ADC) developed by Texas Instruments. This component is designed to efficiently convert analog signals into digital form with a high degree of accuracy and speed. It is particularly suitable for applications requiring fast data acquisition, such as medical imaging, communications, and industrial instrumentation.

Key Features

• High-Speed Operation: This ADC operates at a sampling rate of 50 MSPS (Mega Samples Per Second), enabling it to handle fast-changing signals and providing high-resolution data.
• Resolution: With an 8-bit resolution, the ADC1175-50CILQ/NOPB provides a fine quantization level, allowing for precise digital representation of the input signal.
• Low Power Consumption: This device is optimized for low power consumption, making it an ideal choice for battery-powered or power-sensitive applications.
• Single 3.3V Power Supply: The ADC operates on a single 3.3V power supply, simplifying the power design requirements for the system in which it is integrated.
• Input Bandwidth: It features a full-power bandwidth of 400 MHz, which ensures that high-frequency signals are accurately captured and converted.
• Output Format: Digital output is provided in a parallel LVDS (Low-Voltage Differential Signaling) format, which reduces digital noise and is ideal for high-speed data transfers.

Applications

• Medical Imaging Systems
• High-Speed Data Acquisition
• Digital Oscilloscopes
• Communications Infrastructure
• Test and Measurement Equipment

Package and Quality

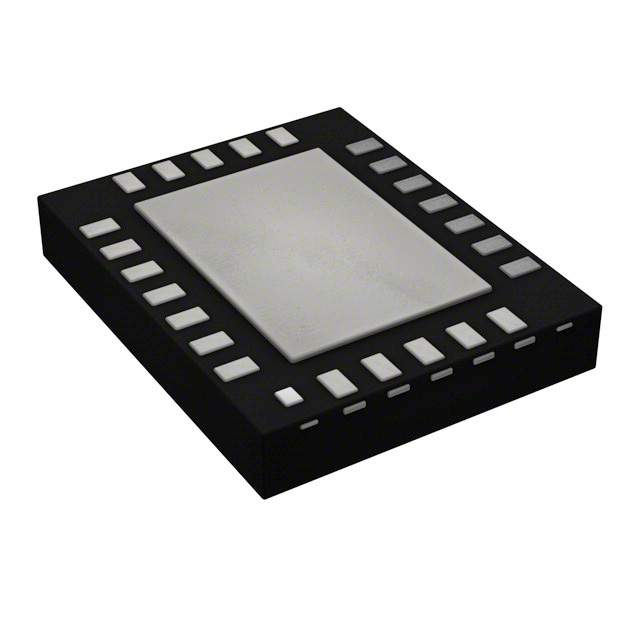

The ADC1175-50CILQ/NOPB comes in a compact LQFP (Low Profile Quad Flat Package) which is surface-mountable, making it suitable for use in space-constrained applications. The device is also part of Texas Instruments' "NOPB" series, indicating that it is lead-free and RoHS compliant, aligning with environmental standards for the reduction of hazardous substances.

Overall, the ADC1175-50CILQ/NOPB from Texas Instruments stands out as a reliable and efficient solution for converting analog signals to digital form in high-speed systems and applications where performance and power efficiency are critical.
