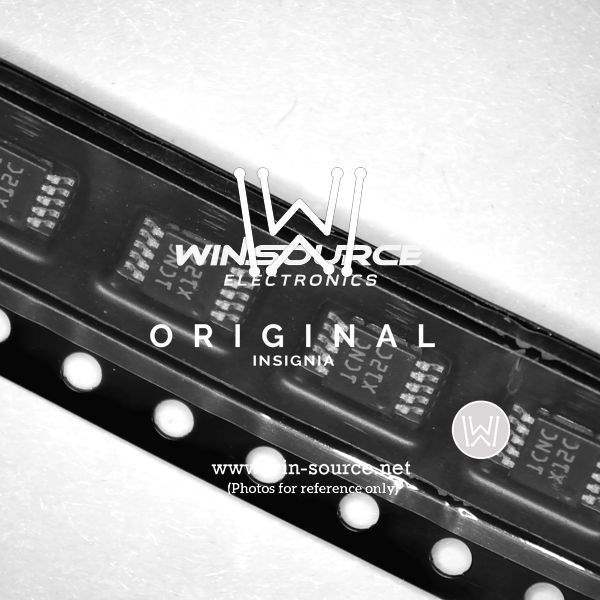

Product Overview: ADC124S051CIMM/NOPB

The ADC124S051CIMM/NOPB is a high-performance, low-power, quad-channel, 12-bit analog-to-digital converter (ADC) produced by Texas Instruments. This precision ADC is designed to operate with a single supply ranging from 2.7V to 5.25V, making it suitable for a wide array of applications including battery-powered devices, data acquisition systems, medical instruments, and industrial control processes.

Key Features

• Resolution: The device offers a 12-bit resolution, providing fine detail in the analog signal conversion process for precise and accurate measurements.
• Channels: It includes four independent input channels, allowing for multiple signal inputs to be converted simultaneously, which is crucial for multi-sensor systems.
• Sampling Rate: The ADC124S051CIMM/NOPB boasts a maximum sampling rate of 500 kSPS (kilo-samples per second), enabling fast data acquisition for real-time processing.
• Low Power Consumption: With a typical operating current of just 1.2 mA and a power-down current of 2 µA, this ADC is optimized for power-sensitive applications.
• Interface: The device features a user-friendly SPI (Serial Peripheral Interface) that allows for easy integration with most microcontrollers and digital systems.
• Package: Housed in a small 10-lead VSSOP (Very Small Shrink Outline Package), the ADC124S051CIMM/NOPB is ideal for space-constrained applications.

Applications

• Portable Devices
• Data Acquisition Systems
• Medical Instruments
• Industrial Automation and Process Control
• Communication Systems

The ADC124S051CIMM/NOPB is designed with a differential analog input range of ±Vref (with Vref ranging from 2.7V to 5.25V), providing flexibility in various signal conditions. It also possesses an excellent signal-to-noise ratio (SNR) and low distortion characteristics, ensuring reliable performance in critical applications.

With its robust design, the ADC124S051CIMM/NOPB is available in a lead-free, RoHS-compliant package, aligning with environmental standards and regulations. Its combination of features, along with Texas Instruments' reputation for quality and reliability, makes this ADC a smart choice for designers seeking to enhance the performance of their digital systems with high-quality analog-to-digital conversion capabilities.
