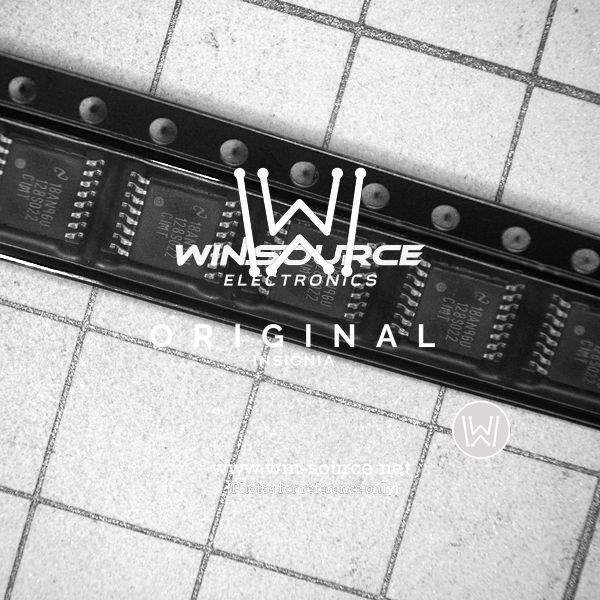

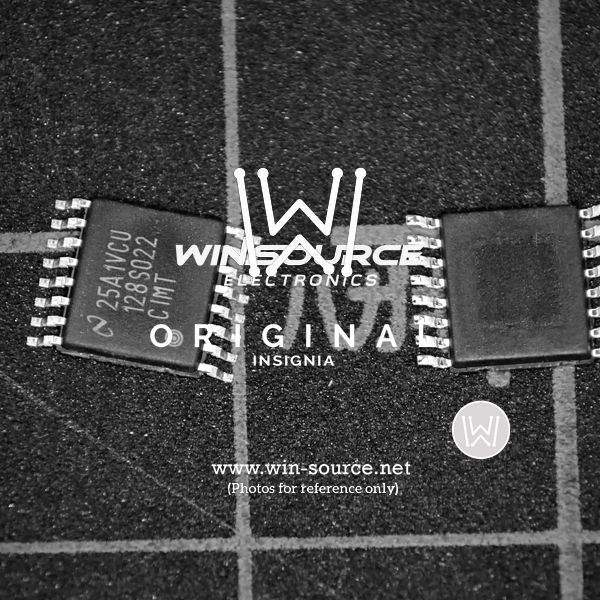

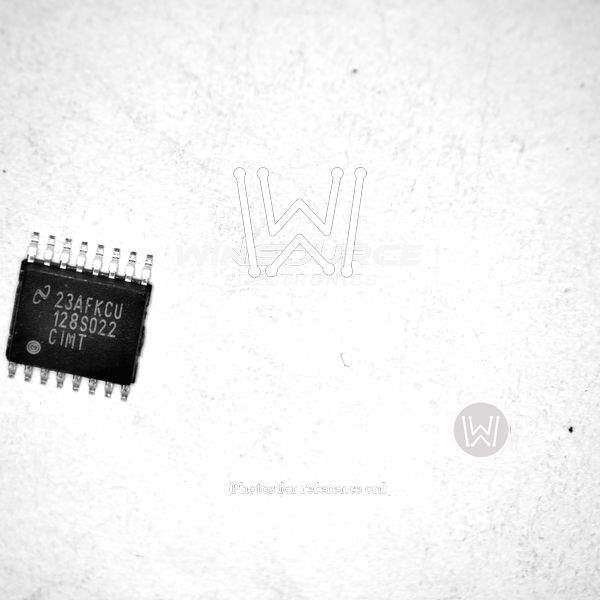

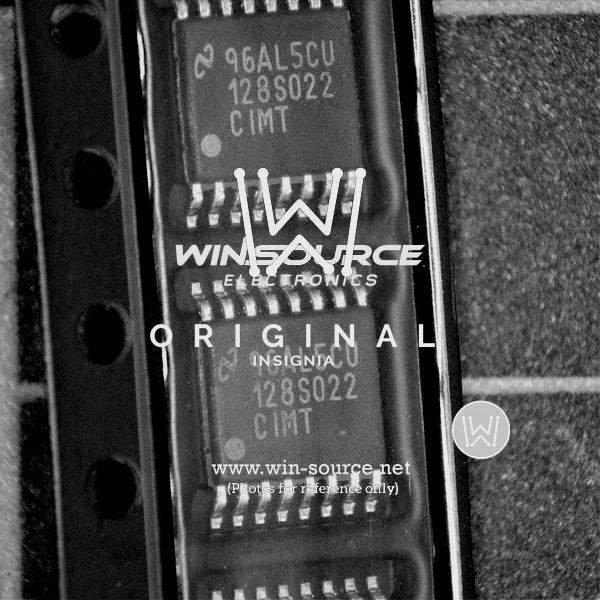

Product Overview: ADC128S022CIMTX

The ADC128S022CIMTX is a precision 12-bit analog-to-digital converter (ADC) designed and manufactured by Texas Instruments. This high-performance ADC features eight channels and operates with a sampling rate of up to 50 kilo-samples per second (ksps). The device is ideal for multi-channel applications where space and power efficiency are critical, making it a perfect choice for portable and battery-powered devices, as well as for industrial, medical, and consumer electronics applications.

Key Features

• Resolution: 12-bit resolution provides high accuracy for a wide range of input signals.
• Channel Count: Equipped with eight single-ended input channels that can be configured as four differential pairs, offering flexibility in handling various signal types.
• Sampling Rate: Offers a maximum sampling rate of 50 ksps, ensuring prompt data acquisition for real-time analysis and control.
• Interface: The device communicates over a simple, SPI-compatible serial interface, enabling easy integration with most microcontrollers and digital systems.
• Low Power Consumption: Designed for low power operation, which is essential for battery-powered and energy-sensitive applications.
• Voltage Supply Range: Operates on a single 2.7V to 5.25V power supply, providing design flexibility for different system voltage levels.
• Package: Available in a compact, 16-pin thin shrink small-outline package (TSSOP), minimizing board space requirements.

Applications

The ADC128S022CIMTX is suitable for a wide array of applications, including:

• Data acquisition systems
• Battery-operated devices
• Medical instruments
• Industrial control systems
• Consumer electronics

Quality and Reliability

Texas Instruments is known for its commitment to quality and reliability, and the ADC128S022CIMTX is no exception. This ADC is designed to meet stringent industry standards, ensuring consistent performance and durability across various operating conditions. The device also features an extended temperature range, making it suitable for harsh environments.

With its combination of multiple channels, high resolution, and low power consumption, the ADC128S022CIMTX from Texas Instruments represents a robust solution for precise and efficient analog-to-digital conversion in complex, multi-signal environments.
