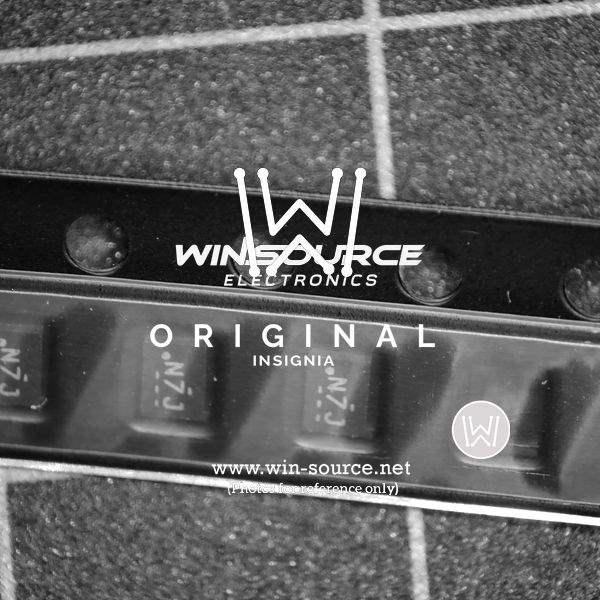

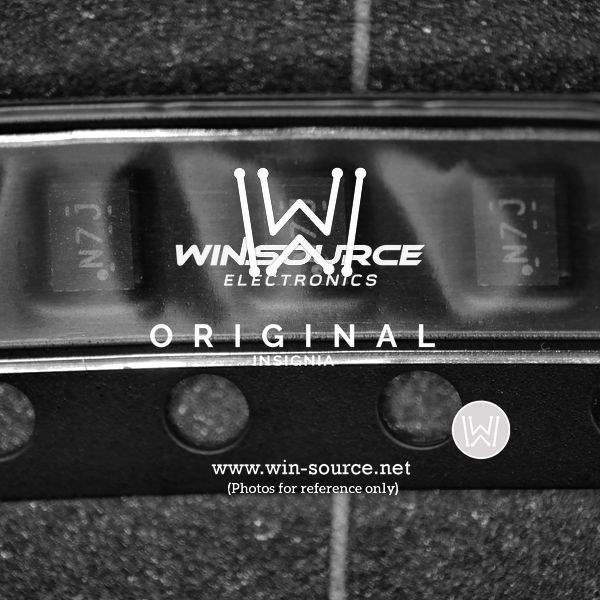

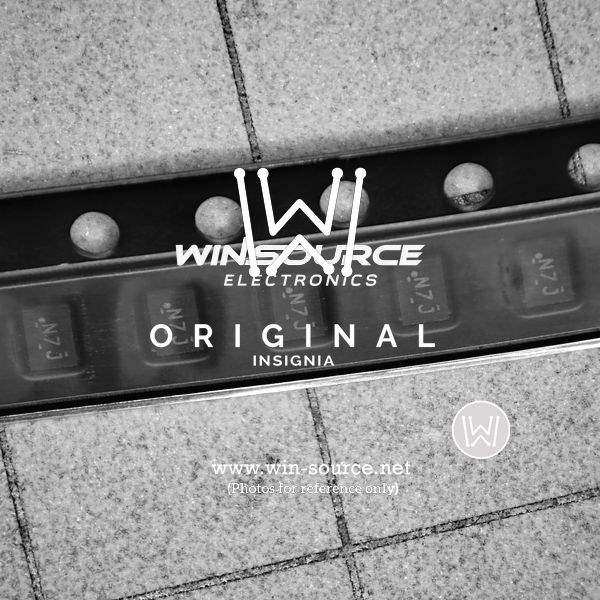

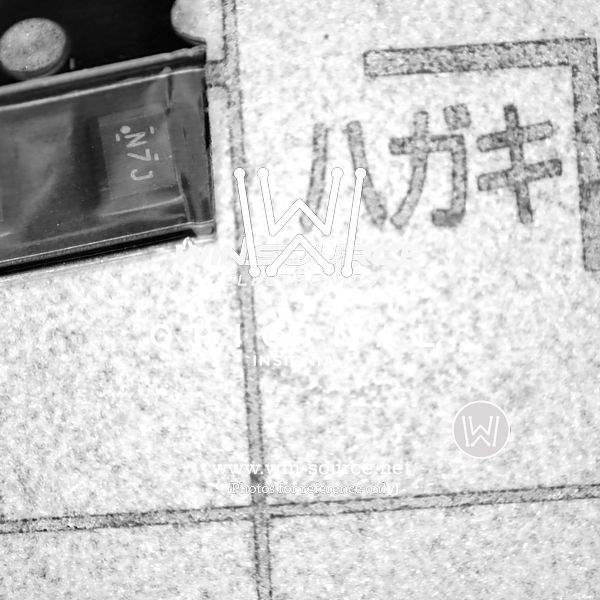

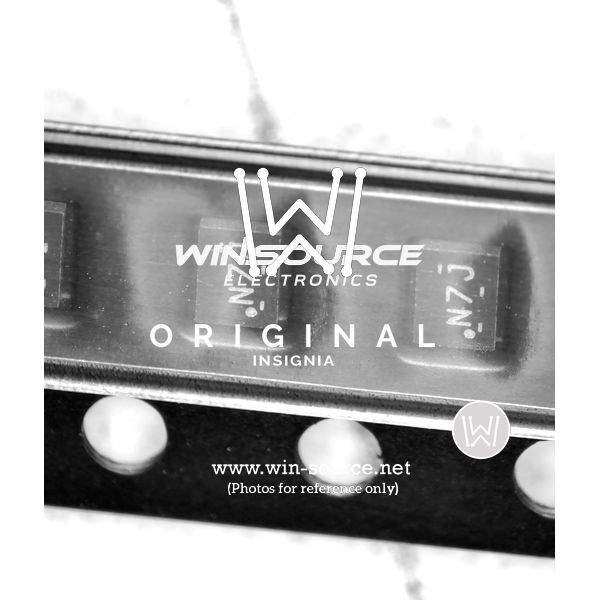

ADS1015IRUGR Real Image ADS1015IRUGR real image1483 ADS1015IRUGR Real Image1 ADS1015IRUGR Real Image2 ADS1015IRUGR Real Image3 ADS1015IRUGR Real Image4
Same model may have multiple batches, images only for reference.
ADS1015IRUGR Real Image ADS1015IRUGR real image1483 ADS1015IRUGR Real Image1 ADS1015IRUGR Real Image2 ADS1015IRUGR Real Image3 ADS1015IRUGR Real Image4
ADS1015IRUGR Real Image ADS1015IRUGR real image1483 ADS1015IRUGR Real Image1 ADS1015IRUGR Real Image2 ADS1015IRUGR Real Image3 ADS1015IRUGR Real Image4
Same model may have multiple batches, images only for reference.

ADS1015IRUGR

Part No ADS1015IRUGR
Manufacturer Texas Instruments
Catalog Data Acquisition - Analog to Digital Converters (ADC)
Description IC ADC 12BIT I2C 3.3KSPS 10QFN
Datasheet
ADS1015IRUGR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Number of Bits 12
Sampling Rate 3.3k
Number of Inputs 2, 4
Input Type Differential, Single Ended
Data Interface I2C
Configuration MUX-PGA-ADC
Number of A/D Converters 1
Reference Type Internal
Analog Supply Voltage 2 V to 5.5 V
Digital Supply Voltage 2 V to 5.5 V
Features PGA, Selectable Address
Temperature Range - Operating -40°C to 125°C
Case / Package 10-X2QFN (2x1.5)
Win Source Part Number 009230-ADS1015IRUGR
Family Name ADS1015
Introduction Date April 01, 2009
ECCN EAR99
Country of Origin Thailand
Halogen Free Compliant
Estimated EOL Date 2028
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian ADS1015IRUGR CAD Model

Description

ADS1015IRUGR Overview

The ADS1015IRUGR is a versatile analog-to-digital converter, delivering reliable performance with a 12-bit resolution. Its advanced architecture supports a spectrum of applications, integrating seamlessly into varied environments.

Features and Benefits

  • Precision Conversion: Maximizes data integrity with its exceptional 12-bit resolution, perfect for detailed analyses.
  • Broad Compatibility: Compatible with a diverse range of designs thanks to its adaptable nature.
  • Enhanced Stability: Designed to maintain stability across different temperatures and usage conditions.

Applications

  • Renewable Energy Systems
  • Healthcare Equipment
  • Networking Devices
  • Industrial Automation

The ADS1015IRUGR stands out as an indispensable component for applications where precision and adaptability are non-negotiable.
