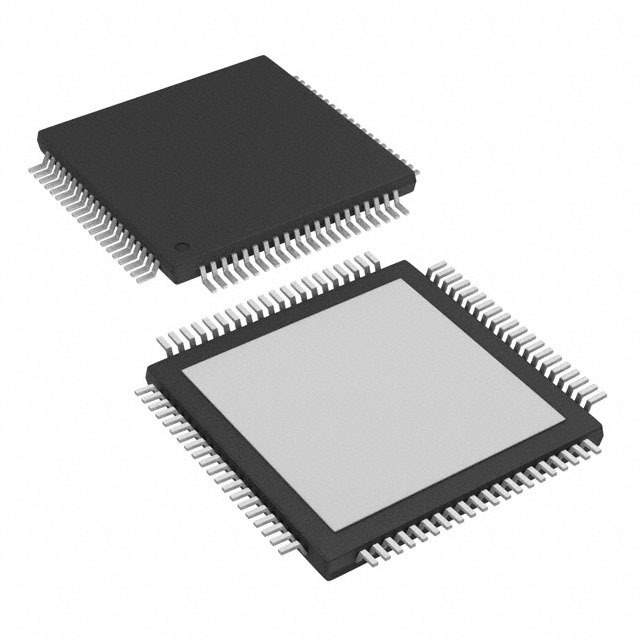

ADS5271IPFP Real Image
Same model may have multiple batches, images only for reference.

ADS5271IPFP

Part No ADS5271IPFP
Manufacturer Texas Instruments
Catalog Data Acquisition - Analog to Digital Converters (ADC)
Description IC ADC 12BIT 8CH 50MSPS 80-HTQFP
Datasheet
ADS5271IPFP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tray
Status Active
Number of Bits 12
Sampling Rate 50M
Number of Inputs 8
Input Type Differential
Data Interface LVDS - Serial
Configuration S/H-ADC
Number of A/D Converters 8
Reference Type External, Internal
Analog Supply Voltage 3 V to 3.6 V
Digital Supply Voltage 3 V to 3.6 V
Features Simultaneous Sampling
Temperature Range - Operating -40°C to 85°C
Case / Package 80-HTQFP (12x12)
Win Source Part Number 009289-ADS5271IPFP
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ADS5271IPFP CAD Model

Description

Product Overview

The ADS5271IPFP is a premier ADC with impressive speed and accuracy, suited for diverse industrial and commercial applications. Renowned for high-speed data conversion, it meets the precise demands of modern electronic applications.

Features and Benefits

  • High Data Rate: Efficiently processes large volumes of data quickly.
  • Reliable Performance: Consistent operation across varied temperature and environmental conditions.
  • Precision Engineering: Ensures accurate signal conversion essential for quality outputs.
  • Compatibility: Easily integrates with other system components, enhancing system flexibility.

Applications

  • Data Communication Systems
  • Advanced Audio Systems
  • Precision Measurement Instruments
  • Industrial Control Systems
