The Texas Instruments ADS5424IPGPR is a high-performance, 14-bit, 105-MSPS analog-to-digital converter (ADC) that combines outstanding dc precision and dynamic performance to support a wide range of demanding applications. This ADC is designed to meet the rigorous specifications of industrial, medical, and communications equipment.

Key Features and Benefits

• High Resolution: With its 14-bit resolution, the ADS5424IPGPR provides fine signal quantization, which is essential for high-precision applications.
• Fast Sampling Rate: The fast 105-MSPS sampling rate ensures that rapidly changing signals are captured with high fidelity, making it suitable for high-speed signal processing tasks.
• Excellent Dynamic Performance: The device boasts a superior spurious-free dynamic range (SFDR) and signal-to-noise ratio (SNR), which are critical for applications requiring high signal clarity.
• Differential Inputs: Differential input capability provides improved noise immunity and is ideal for environments with high levels of electromagnetic interference.
• Low Power Consumption: Despite its high performance, the ADS5424IPGPR is designed for efficiency, with low power consumption that helps to minimize thermal issues and power-related costs.
• Flexible Interface: The device includes a parallel CMOS-compatible digital interface, which allows for easy integration with a variety of host processors and FPGAs.
• Programmable Features: Users can program several features, including input range and format, to optimize performance for specific applications.

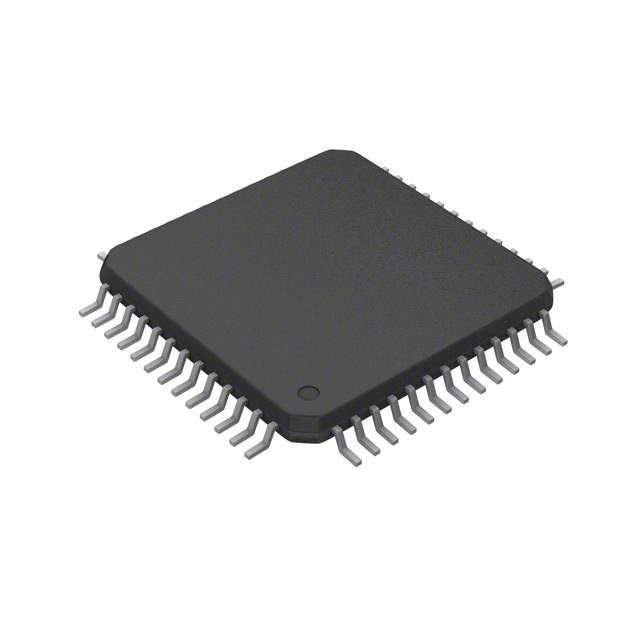

• Compact Packaging: Housed in a space-saving HTQFP-64 package, the ADS5424IPGPR is well-suited for compact designs where board space is at a premium.

Applications

The ADS5424IPGPR is versatile enough to be used in a wide array of applications, including:

• Medical Imaging Systems
• Test and Measurement Equipment
• Digital Data Acquisition
• Communications Infrastructure
• Radar and Satellite Antenna Systems

Whether you're developing advanced medical imaging devices or high-speed communication systems, the ADS5424IPGPR from Texas Instruments provides the performance and reliability required to deliver superior results.
