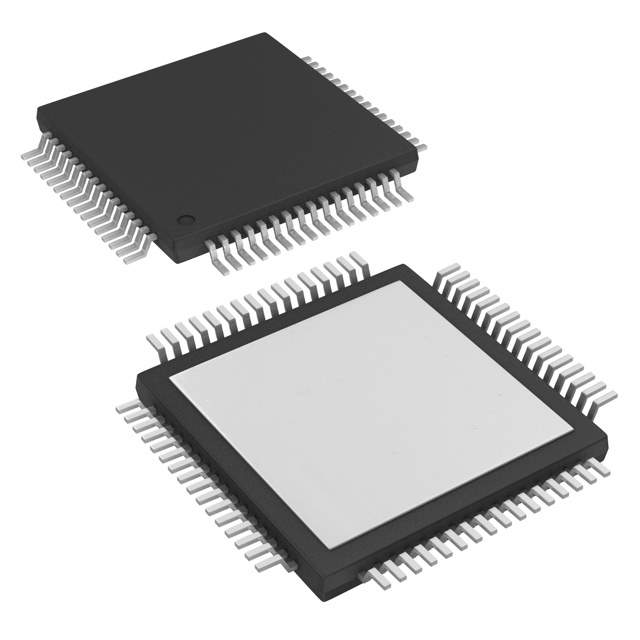

ADS5520IPAPR Real Image
Same model may have multiple batches, images only for reference.

ADS5520IPAPR

Part No ADS5520IPAPR
Manufacturer Texas Instruments
Catalog Data Acquisition - Analog to Digital Converters (ADC)
Description 12-Bit, 125 MSPS Analog-To-Digital Converter
Datasheet
ADS5520IPAPR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Texas Instruments
Architecture Pipelined
Power Dissipation 627(W)
Mounting Surface Mount
Operating Temp Range -40C to 85C
Package Type HTQFP EP
Packaging Tape and Reel
Pin Count 64
Rated Input Volt ±1.15
Number of Elements 1
Sample Rate 125000(KSPS)
Input Type Voltage
Operating Temperature Classification Industrial
Differential Input Yes
Input Polarity Bipolar
Dual Supply Voltage (Typ) Not Required(V)
Power Supply Requirement Single
Dual Supply Voltage (Min) Not Required(V)
Rad Hardened No
Single Supply Voltage (Min) 3(V)
Single Supply Voltage (Max) 3.6(V)
Single Supply Voltage (Typ) 3.3(V)
Dual Supply Voltage (Max) Not Required(V)
Differential Linearity Error ±0.5LSB
Resolution 12Bit
Integral Nonlinearity Error ±1.5LSB(LSB)
Input Signal Type Differential
Win Source Part Number 077771-ADS5520IPAPR
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ADS5520IPAPR CAD Model

Description

The ADS5520IPAPR builds on the trusted architecture of its predecessors, providing superior data conversion capabilities in a resilient package optimized for professional use.

Features and Benefits

  • Precision 12-Bit Conversion: Delivers high fidelity in waveform digitization.
  • High Efficiency: Minimizes power requirements, maximizing operational efficiency.
  • Robust to Environmental Changes: High stability over a wide temperature range.
  • Versatile Footprint: Designed for ease of integration in a variety of systems.

Applications

  • Remote Sensing Systems
  • Industrial Automation
  • Instrument-Calibrating Equipment
  • Communication Infrastructure

The ADS5520IPAPR is ideal for engineers who demand accuracy and reliability in high-fidelity and industrial electronic systems.
