The Texas Instruments ADS5542IPAPR is a high-performance, 14-bit analog-to-digital converter (ADC) designed for a broad range of applications, including communications, test and measurement systems, and medical imaging. This ADC features an impressive sampling rate of up to 80 MSPS (Mega Samples Per Second), which allows for accurate digitization of high-frequency signals, ensuring fidelity and precision in capturing data.

Key Features

• High Resolution: With its 14-bit resolution, the ADS5542IPAPR provides fine quantization levels, resulting in detailed and precise digital output.
• Fast Sampling Rate: The ability to sample at rates up to 80 MSPS makes this ADC suitable for high-speed signal processing requirements.
• Differential Inputs: The differential input structure enhances noise immunity and is ideal for dealing with small signal amplitudes in noisy environments.
• Low Power Consumption: Despite its high performance, the ADS5542IPAPR is designed for efficiency, with a typical power consumption of only 380 mW at the full sampling rate.
• Flexible Interface: It supports a parallel LVDS (Low Voltage Differential Signaling) output interface which provides a robust and high-speed data transfer.

Applications

The versatility of the ADS5542IPAPR allows it to be integrated into various high-speed data acquisition systems. Its primary applications include:

• Wireless and Wired Communications
• Radar and Satellite Subsystems
• Test and Measurement Equipment
• Medical Imaging Systems
• Professional Video Equipment

Package and Quality

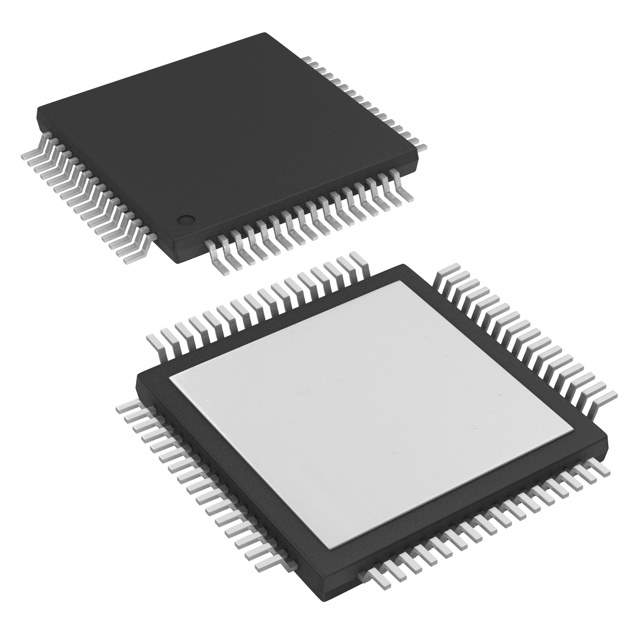

The ADS5542IPAPR comes in a compact 64-TQFP (Thin Quad Flat Pack) package, which is suitable for space-constrained applications. Texas Instruments ensures high-quality standards, and this product is available in a lead-free version, complying with international regulations for electronic components.

For design engineers looking for an ADC that delivers high-speed performance with precision, the ADS5542IPAPR from Texas Instruments stands out as a reliable and efficient choice for advanced digital signal processing applications.
