Product Overview: Texas Instruments ADS7800BH

The Texas Instruments ADS7800BH is a high-precision, 12-bit analog-to-digital converter (ADC) with a unique combination of features that make it suitable for a wide range of applications in industrial, medical, and scientific instrumentation. This premium ADC is designed to deliver exceptional accuracy and speed, ensuring reliable performance in critical systems.

Key Features

• High Resolution: The ADS7800BH boasts a 12-bit resolution, providing fine detail in the analog signal conversion process, which is essential for applications requiring precise data acquisition.
• Fast Conversion Rate: With a fast throughput rate, this ADC can handle up to 100 kilosamples per second (ksps), making it an excellent choice for high-speed systems that require quick data processing.
• Sample-and-Hold Function: The integrated sample-and-hold circuit ensures accurate sampling of the input signal without distortion, preserving the integrity of the converted data.
• Single +5V Power Supply: The ADS7800BH operates on a single +5V power supply, simplifying the power design in embedded systems and helping to reduce overall power consumption.
• Bipolar Input Range: The device supports a ±10V input range, allowing it to accommodate a wide variety of signal levels.
• Parallel Interface: A parallel data interface facilitates easy integration with microcontrollers and digital signal processors, providing straightforward connectivity and data transfer.

Applications

The ADS7800BH is ideal for a range of applications, including:

• Precision data acquisition systems
• Industrial process control
• Medical equipment
• Scientific instrumentation
• Automatic test equipment

Reliability and Quality

As with all Texas Instruments products, the ADS7800BH is manufactured to the highest quality standards, ensuring reliable operation even in the most demanding environments. With its robust feature set, this ADC is a versatile component that enhances the performance and precision of your electronic designs.

Product Packaging and Availability

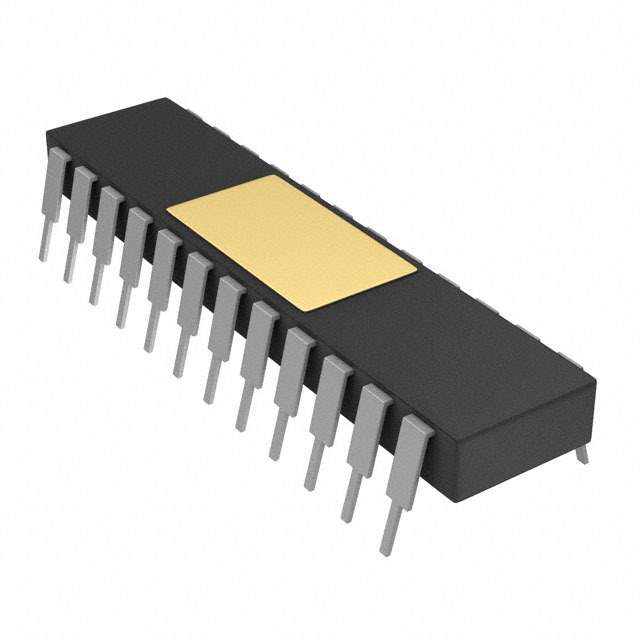

The ADS7800BH is available in a compact 24-pin ceramic dip package, which is designed for easy mounting on printed circuit boards. For detailed specifications, sample requests, or to place an order, visit the Texas Instruments website or contact an authorized distributor.
