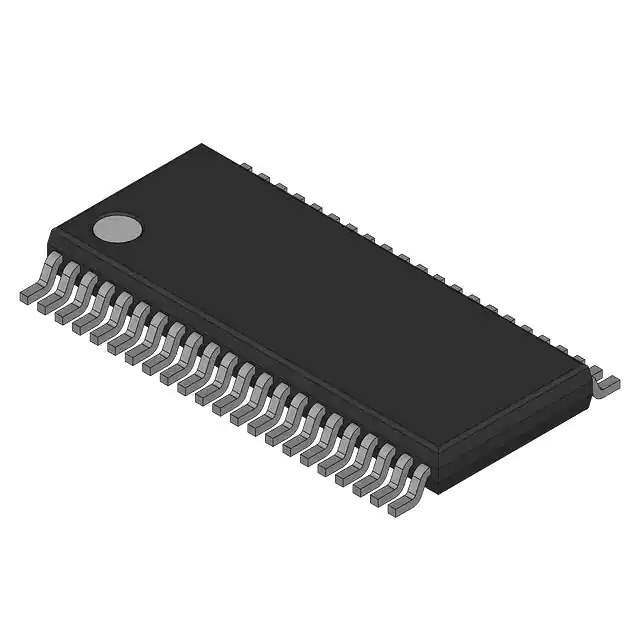

The BQ20Z65DBTR is a highly sophisticated battery monitor and management device from Texas Instruments, designed explicitly for single-cell and multi-cell battery packs. This integrated circuit (IC) is a part of the extensive portfolio of battery management solutions that Texas Instruments offers, and it stands out for its precision and reliability in various applications such as portable electronics, power tools, and energy storage systems.

Key Features

• Impedance Track™ Technology: At the core of the BQ20Z65DBTR is TI's proprietary Impedance Track™ algorithm, which provides highly accurate state-of-charge (SOC) readings. This technology ensures that the SOC measurement adapts over time to reflect the battery's actual capacity, which can change due to aging, temperature, and cycle patterns.
• Multi-Cell Support: The device is capable of monitoring and managing single-cell and multi-cell battery configurations, making it versatile for a wide range of battery-powered applications.
• Data Flash Storage: With integrated data flash storage, the BQ20Z65DBTR can store critical battery parameters and history, which can be invaluable for diagnostics and optimizing battery performance over its lifespan.
• Communication Interface: It features an SMBus interface, which allows for communication with the host system, enabling the exchange of vital battery information and facilitating firmware updates.

Applications

The BQ20Z65DBTR is ideal for a variety of applications where accurate battery monitoring and management are critical. These applications include:

• Notebook Computers
• Portable Medical Devices
• Handheld Instruments
• Uninterruptible Power Supplies (UPS)
• Smart Battery Packs

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the BQ20Z65DBTR is no exception. It is designed to meet the stringent requirements of portable and stationary battery systems, ensuring long-term reliability and performance. With built-in safety features, the BQ20Z65DBTR protects against overcharge, over-discharge, over-current, and short-circuit conditions, enhancing the safety and longevity of the battery pack.

For designers and engineers looking for a robust battery management solution, the BQ20Z65DBTR by Texas Instruments offers the perfect blend of accuracy, flexibility, and reliability.
