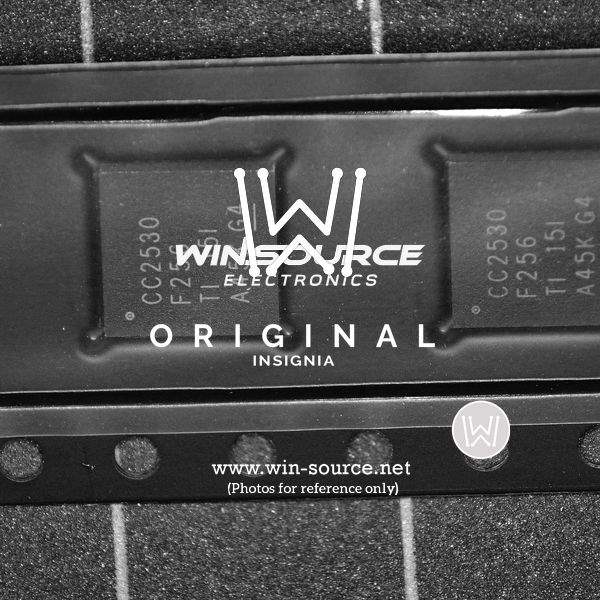

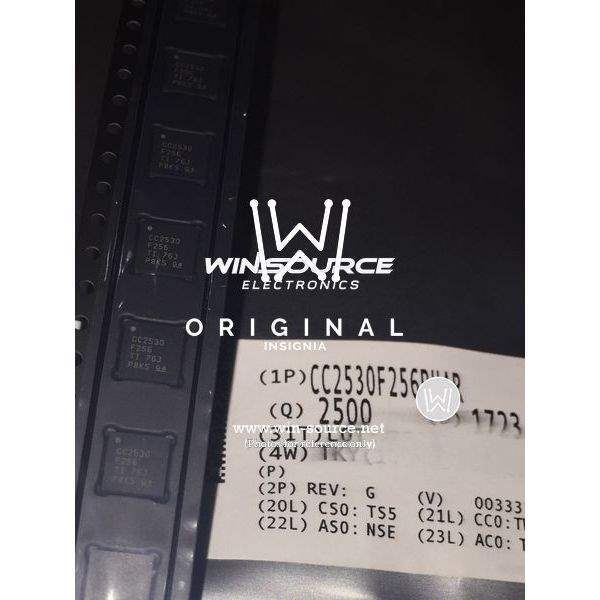

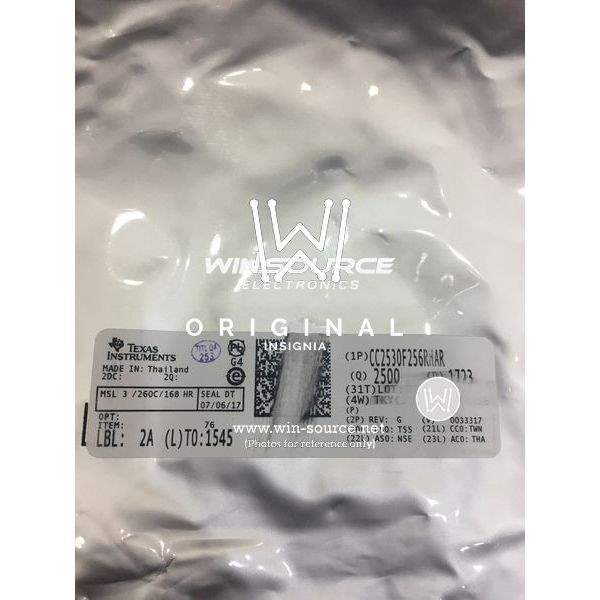

CC2530F256RHAR Texas Instruments CC2530F256RHAR real image2957 CC2530F256RHAR Real Image1 CC2530F256RHAR Real Image2 CC2530F256RHAR label picture CC2530F256RHAR real image
Same model may have multiple batches, images only for reference.
CC2530F256RHAR Texas Instruments CC2530F256RHAR real image2957 CC2530F256RHAR Real Image1 CC2530F256RHAR Real Image2 CC2530F256RHAR label picture CC2530F256RHAR real image
CC2530F256RHAR Texas Instruments CC2530F256RHAR real image2957 CC2530F256RHAR Real Image1 CC2530F256RHAR Real Image2 CC2530F256RHAR label picture CC2530F256RHAR real image
Same model may have multiple batches, images only for reference.

CC2530F256RHAR

Part No CC2530F256RHAR
Manufacturer Texas Instruments
Catalog RF Transceiver ICs
Description IC RF TXRX+MCU 802.15.4 40-VFQFN
Datasheet
CC2530F256RHAR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type TxRx + MCU
RF Family/Standard 802.15.4
Protocol Zigbee
Frequency 2.4GHz
Data Rate (Max) 250kbps
Power - Output 4.5dBm
Sensitivity -97dBm
Memory Size 256kB Flash, 8kB RAM
Serial Interfaces SPI, USART
GPIO 21
Supply Voltage - Operating 2 V to 3.6 V
Current - Receiving 20.5mA to 24.3mA
Current - Transmitting 28.7mA to 33.5mA
Temperature Range - Operating -40°C to 125°C
Dimension 40-VFQFN Exposed Pad
Win Source Part Number 012771-CC2530F256RHAR
Family Name CC2530
Introduction Date October 01, 2008
ECCN 5A992.c
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2027
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian CC2530F256RHAR CAD Model

Description

CC2530F256RHAR Zigbee System-on-Chip (SoC)

The CC2530F256RHAR provides an integrated solution with a high-capacity memory for advanced Zigbee-compliant applications, utilizing Texas Instruments' sophisticated SoC technology.

  • Features & Benefits:
  • Includes a 256 kB Flash memory for versatile application storage.
  • Incorporates a powerful 8051 microcontroller core.
  • Efficient RF performance across extended ranges.

Applications/Projects:

  • Advanced Home Energy Management Systems
  • Intelligent Agricultural Monitoring
  • Smart Traffic Systems
  • Medical Monitoring Solutions

Additional Details: Provides simple integration with development kits and software tools, facilitating rapid design and deployment.
