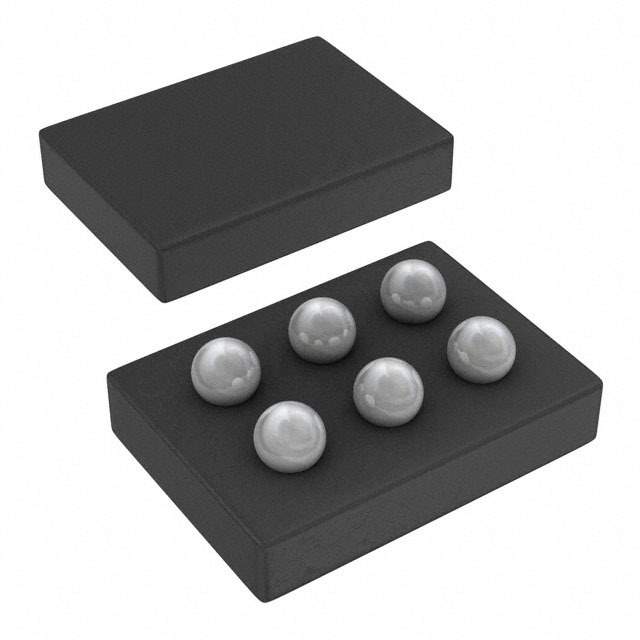

The Texas Instruments CSD13303W1015 is a state-of-the-art N-Channel NexFET™ power MOSFET designed to deliver high efficiency and performance for a wide range of applications. This power MOSFET is an ideal choice for designers looking for a component that offers low on-resistance and low gate charge, enabling efficient power management in compact form factors.

Key Features

• Ultra-Low On-Resistance: The CSD13303W1015 boasts an exceptionally low on-resistance (R<sub>DS(on)) of 10.5 mΩ, which minimizes conduction losses and improves overall efficiency.
• Advanced Technology: Utilizing Texas Instruments' cutting-edge NexFET™ technology, this MOSFET provides high performance with reduced gate charge and capacitance.
• Compact Footprint: Designed in a small 2mm x 2mm SON package, the CSD13303W1015 is perfect for space-constrained applications, allowing for more efficient use of PCB space.
• High Continuous Drain Current: It supports a high continuous drain current (I<sub>D) of 15 A, making it suitable for high-power applications.
• Wide Operating Temperature Range: The device can operate over a broad temperature range, making it versatile for various environments and conditions.

Applications

The Texas Instruments CSD13303W1015 is versatile and can be used in a variety of applications, including:

• Power Supply Circuits
• DC-DC Converters
• Motor Drives
• Battery Management Systems
• Load Switches
• Point of Load (POL) Modules

Reliability and Quality

With Texas Instruments' commitment to quality, the CSD13303W1015 is manufactured to the highest standards, ensuring reliability and performance consistency. It is RoHS compliant and designed to meet the rigorous demands of industrial and commercial applications.

Conclusion

Whether you are designing power supplies, managing batteries, or developing high-efficiency motor drives, the Texas Instruments CSD13303W1015 offers the performance, efficiency, and reliability needed to create cutting-edge technology. Its small footprint, combined with exceptional electrical characteristics, makes it a go-to MOSFET for engineers and designers across various industries.
