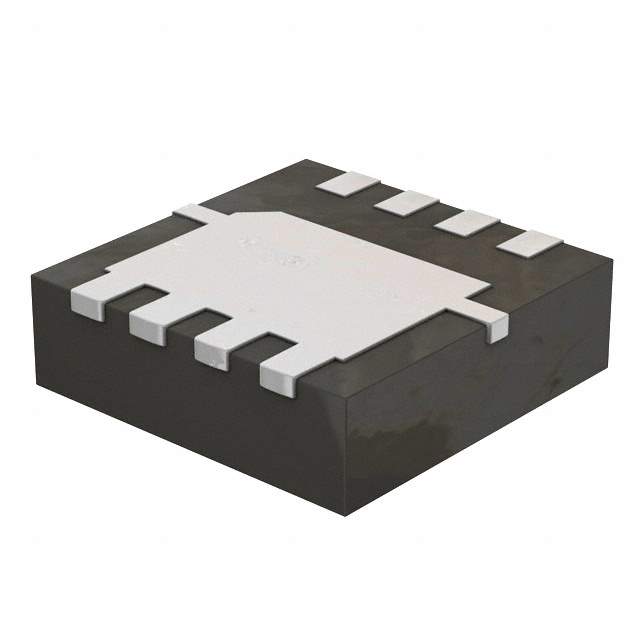

CSD16411Q3

Name: CSD16411Q3
Brand: Texas Instruments
SKU: 97489
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	CSD16411Q3
Manufacturer	Texas Instruments
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 25V 56A 8-SON
Datasheet	CSD16411Q3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Texas Instruments
Packaging	Reel - TR
Status	Active
Polarity	N-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	25V
Continuous Drain Current at 25°C	14A (Ta), 56A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Gate-Source Threshold Voltage	2.3V @ 250μA
Max Gate Charge	3.8nC @ 4.5V
Max Input Capacitance	570pF @ 12.5V
Maximum Gate-Source Voltage	+16V, -12V
Power Dissipation (Max)	2.7W (Ta)
Maximum Rds On at Id,Vgs	10 mOhm @ 10A, 10V
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	8-VSON (3.3x3.3)
Dimension	8-PowerVDFN
Win Source Part Number	013354-CSD16411Q3
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Application Field	Used in Power Management, Communications & Networking, Computers & Computer Peripherals, Industrial
Ultra Librarian 3D Model	Ultra Librarian CSD16411Q3 CAD Model

Description

CSD16411Q3 - Power MOSFET

The CSD16411Q3 is a versatile MOSFET suitable for various switching applications. It ensures high-efficiency operation and is ideal for compact and energy-efficient designs.

Applications:
- Notebook Power Management
- Battery Protection Circuits
- Consumer Electronics
Features and Benefits:
- Low power loss with low On-resistance
- Fast switching speed
- Compact QFN package
Additional Details:
- Maximum Drain-Source Voltage: 30V
- Maximum Continuous Drain Current: 50A
