The Texas Instruments CSD17313Q2T is a high-performance, N-Channel NexFET™ power MOSFET designed to deliver efficient power management and conversion. This device is tailored for a variety of applications, including load switches, power supplies, and motor drives, where low on-resistance and high switching performance are critical.

Key Features

• Low On-Resistance: The CSD17313Q2T boasts an ultra-low on-resistance of just 8.7 mΩ at a gate-to-source voltage of 4.5V, ensuring minimal conduction losses and improved overall efficiency.
• Advanced Technology: Utilizing TI's cutting-edge NexFET technology, this MOSFET provides superior switching performance and improved thermal characteristics compared to traditional MOSFETs.

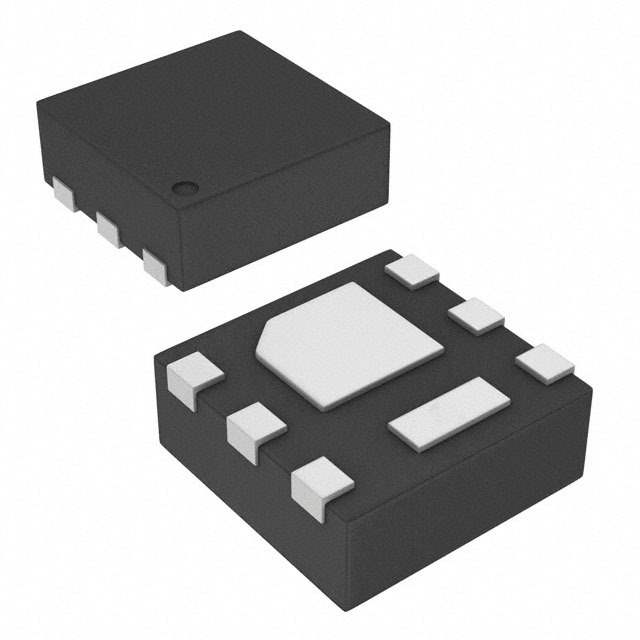

• Compact Size: The device comes in a small 2mm x 2mm SON package, making it an excellent choice for space-constrained applications.
• High Continuous Drain Current: It supports a high continuous drain current of up to 25A, making it suitable for high-power applications.
• Low Threshold Voltage: A low gate threshold voltage allows for operation at lower gate drive voltages, which can be beneficial in low-voltage circuits.

Applications

• DC/DC Converters
• Load Switches
• Power Management for Portable Devices
• Motor Control Circuits
• Point of Load (POL) Modules

Reliability and Quality

Texas Instruments is renowned for its commitment to quality and reliability. The CSD17313Q2T MOSFET is no exception, undergoing rigorous testing and quality control measures to ensure it meets the high standards expected from TI products. This device is RoHS compliant and is designed to provide long-term reliability in a broad range of operating conditions.

Support and Resources

Customers can access a wealth of resources, including datasheets, application notes, and design tools, through the Texas Instruments website. TI also offers technical support and design assistance to help integrate the CSD17313Q2T into your next project successfully.
