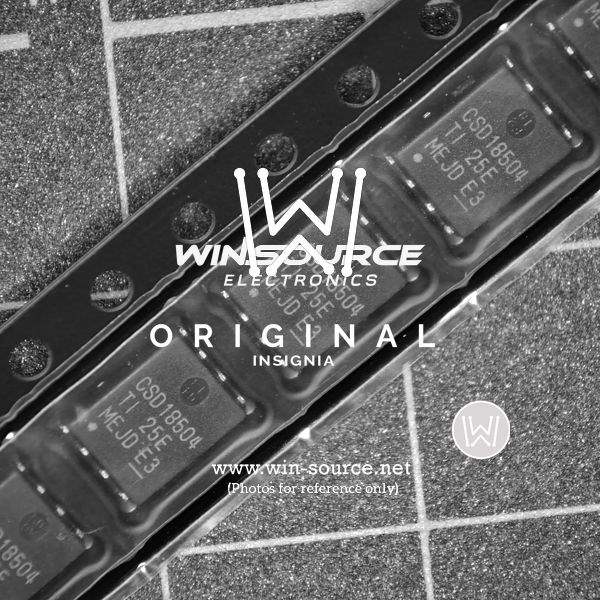

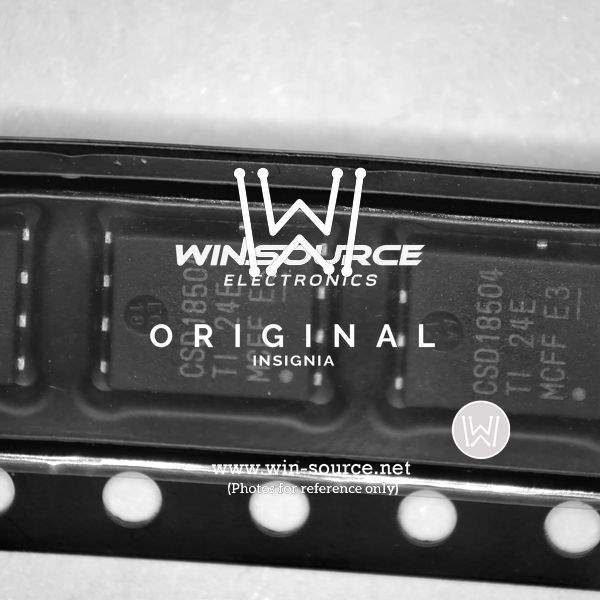

Introducing the CSD18504Q5AT MOSFET from Texas Instruments

The CSD18504Q5AT is a state-of-the-art, N-Channel NexFET™ power MOSFET, brought to you by the renowned semiconductor manufacturer, Texas Instruments (TI). This high-performance component is designed to deliver optimal efficiency and power density, making it an ideal choice for a wide range of applications, including power supply, industrial, and automotive systems.

Key Features and Benefits

• Low On-Resistance: The CSD18504Q5AT boasts an exceptionally low drain-to-source on-resistance (R<sub>DS(on)) of just 2.5 mΩ (typical), which minimizes conduction losses and enhances overall efficiency.
• Ultra-Low Q<sub>g and Q<sub>sw: With its optimized gate charge (Q<sub>g) and switch charge (Q<sub>sw), this MOSFET ensures reduced switching losses, making it suitable for high-frequency power switching applications.
• Advanced Packaging: The device comes in a compact, thermally enhanced 8-pin SON package, which provides exceptional thermal performance and space savings on the PCB.
• High Continuous Drain Current: It can handle a high continuous drain current (I<sub>D) of 100 A, allowing it to manage higher power levels with ease.
• Robust Thermal Management: The CSD18504Q5AT is characterized by its excellent thermal resistance, which contributes to reliable operation even under high-temperature conditions.

Applications

The versatility of the CSD18504Q5AT makes it suitable for a variety of applications:

• DC/DC conversion systems
• Motor drives
• Power inverters
• Synchronous rectification
• Load switches
• Hot-swap circuits

Quality and Reliability

As with all Texas Instruments products, the CSD18504Q5AT is manufactured to the highest quality standards, ensuring both reliability and performance. It is RoHS compliant and designed to meet the rigorous demands of the industrial and automotive industries, with a guaranteed operating junction temperature range from -55°C to 175°C.

Whether you are designing a sophisticated power management system or looking for a high-efficiency solution for your next project, the CSD18504Q5AT from Texas Instruments offers the performance and reliability you need. Experience the difference in power conversion with TI's advanced MOSFET technology.
