Overview of Texas Instruments CSD18532NQ5B MOSFET

The Texas Instruments CSD18532NQ5B is a high-performance, N-Channel NexFET™ power MOSFET designed to deliver efficient power management and conversion for a wide range of applications. This advanced semiconductor device is a testament to Texas Instruments' commitment to providing innovative solutions that meet the evolving needs of modern electronic systems.

Key Features

• Low On-Resistance (R<sub>DS(on)): The CSD18532NQ5B boasts an exceptionally low on-resistance of just 8 mΩ at V<sub>GS = 10V, which minimizes conduction losses and enhances overall system efficiency.
• High Continuous Drain Current (I<sub>D): It is capable of supporting a continuous drain current of up to 100 A, making it suitable for high-power applications.

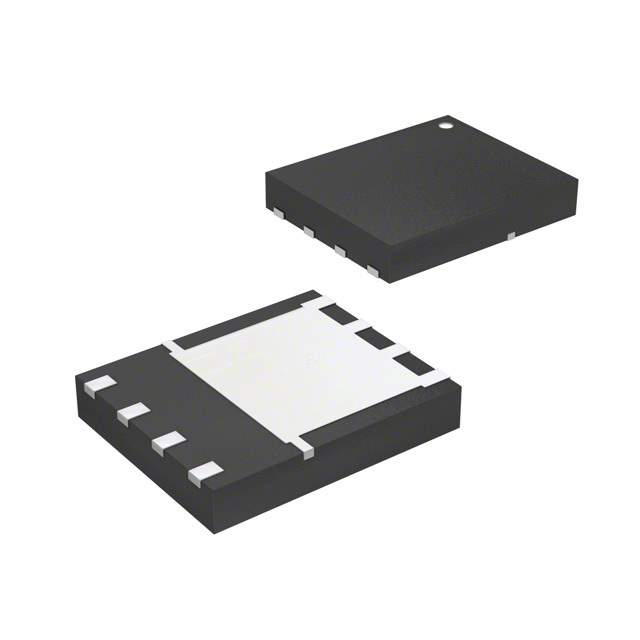

• Enhanced Thermal Performance: The MOSFET comes in a SON 5x6mm plastic package that offers excellent thermal resistance, ensuring reliable operation even under high-temperature conditions.
• Fast Switching Speed: With its advanced technology, the CSD18532NQ5B provides fast switching capabilities, which is critical for reducing switching losses in power conversion systems.

Applications

The CSD18532NQ5B is versatile and can be used in various applications including:

• DC/DC Converters
• Motor Drives
• Power Supplies
• Synchronous Buck Converters
• Server and Telecom Power Systems

Reliability and Quality

Reliability is a cornerstone of Texas Instruments' products, and the CSD18532NQ5B is no exception. It is designed to meet stringent quality standards, ensuring long-term reliability for critical applications. Users can expect consistent performance and durability from this MOSFET.

Environmental Considerations

The CSD18532NQ5B is RoHS compliant and free from environmentally harmful substances. This commitment to environmental stewardship makes it an ideal choice for eco-conscious manufacturers looking to create sustainable products.

Overall, the Texas Instruments CSD18532NQ5B MOSFET is a powerful component that offers efficiency, reliability, and high performance, making it an excellent choice for designers seeking to optimize their power management systems.
